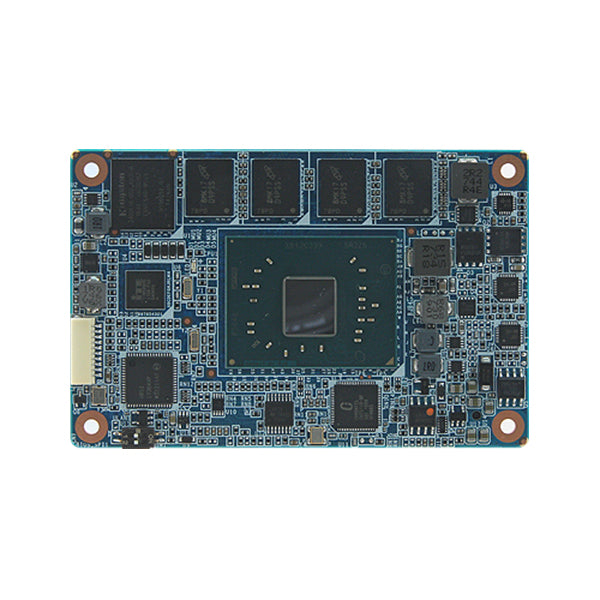

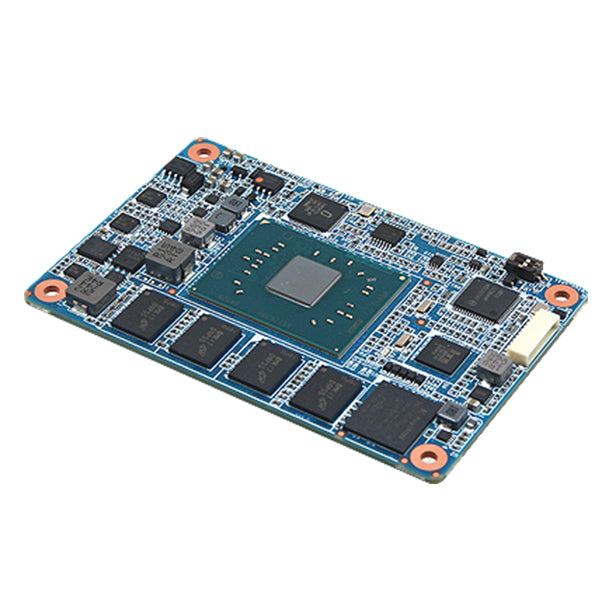

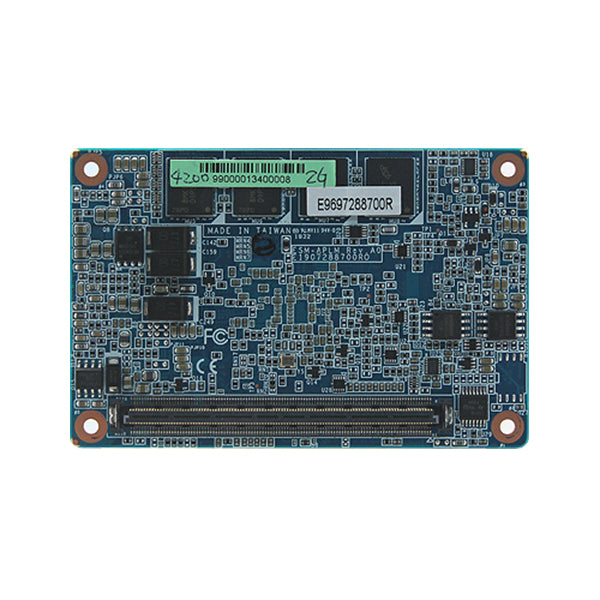

ESM-APLM-N4200-A1R

Name: ESM-APLM-N4200-A1R
Brand: Avalue
SKU: 56759300
Availability: InStock

Avalue

Ціна за запитом

COM Express Mini Type 10, Intel Pentium N4200 SoC BGA Processor, up to 8GB DDR3L 1866, Up to 128GB eMMC 5.1, 2xSATA 3, 10xUSB, eDP, LVDS, Audio, 1xGbE LAN, 1xPCIe x4, 8bit GPIO, 5V DC In

Специфікація

Specification

System Architecture
Form Factor	COM Express CPU Module
CPU
Processor Installed	Intel Pentium N4200
Memory
Maximum Memory	8 GB
Graphic
Graphic Controller	Intel Gen9 Graphic engine
Ethernet
Controller Type	Intel i211-AT 10/100/1000 Mbps
Total Ethernet	1
10/100/1000 Mbit/s	1
Interfaces
USB 2.0	8
Extension Slots
PCI Express x4	4
Connectors
Connectors	LVDS, RJ45 Ethernet, 10xUSB, Mic In, Line Out, Display Port, SMBus Power Output
Software
Operating System Compatibility	Linux OS, Windows 10
Dimensions and weight
Width	84 mm
Length	55 mm
Standards and Certifications
Certifications	CE, FCC Class B
