ET-2242-32

Name: ET-2242-32
Brand: ICP DAS
SKU: 10328200
Availability: InStock

ICP DAS

Ціна за запитом

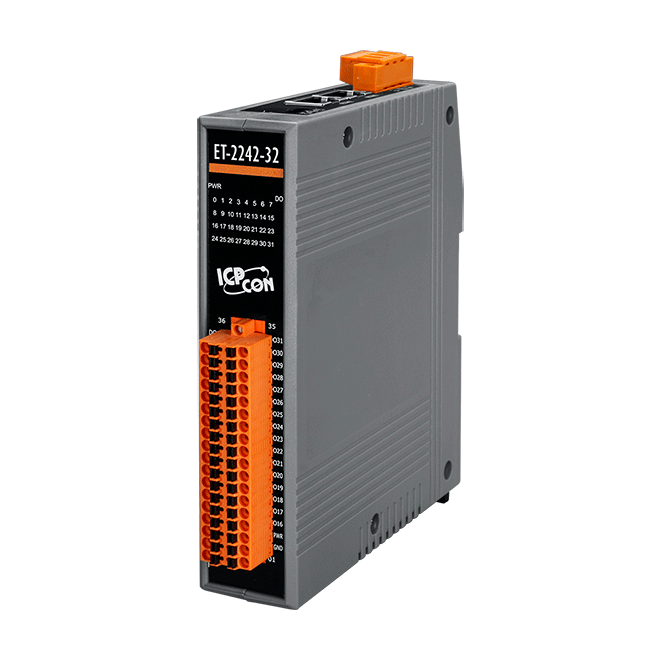

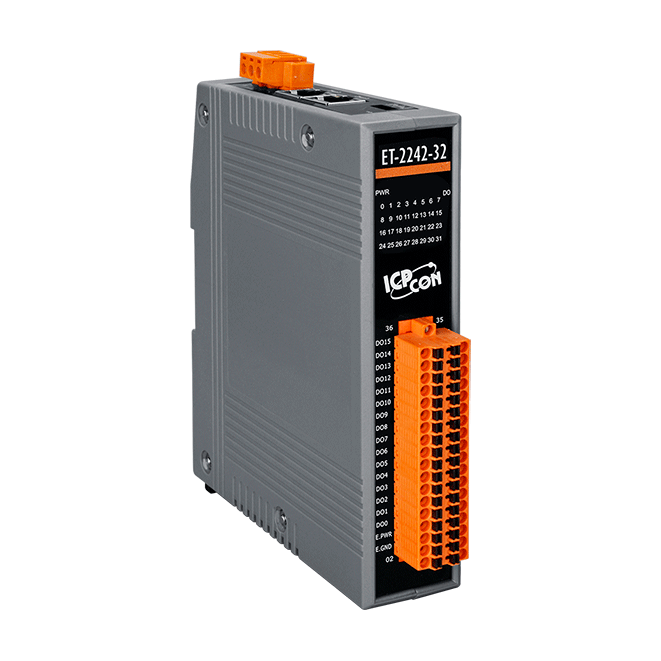

Ethernet I/O Module with 2-port Ethernet Switch, 32-ch Open Collector Digital Output (RoHS), 10-48VDC-in

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount

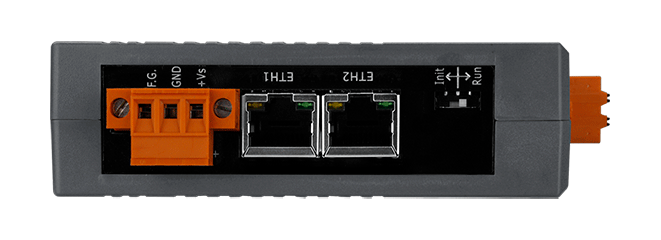

Ethernet
Total Ethernet	2
10/100 Mbit/s	2
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus UDP slave, MQTT
Digital Output
Total channels of digital output	32
Type	Open collector
Sink/Source	Sink
Output voltage	3.5~50 V
Max. load current	600 mA
Dimensions and weight
Width	31 mm
Depth	157 mm
Height	126 mm
Operating Conditions
Operating Temperature	-25...70 °C
Humidity	10-90%
