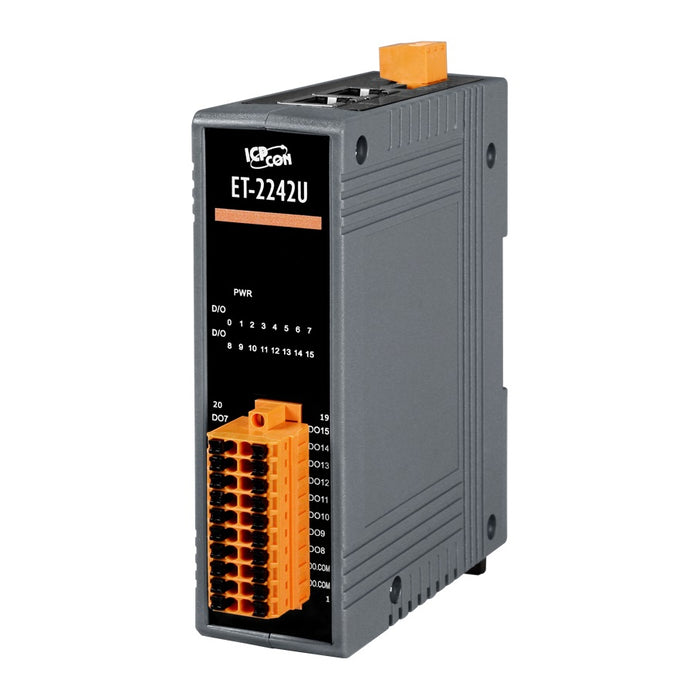

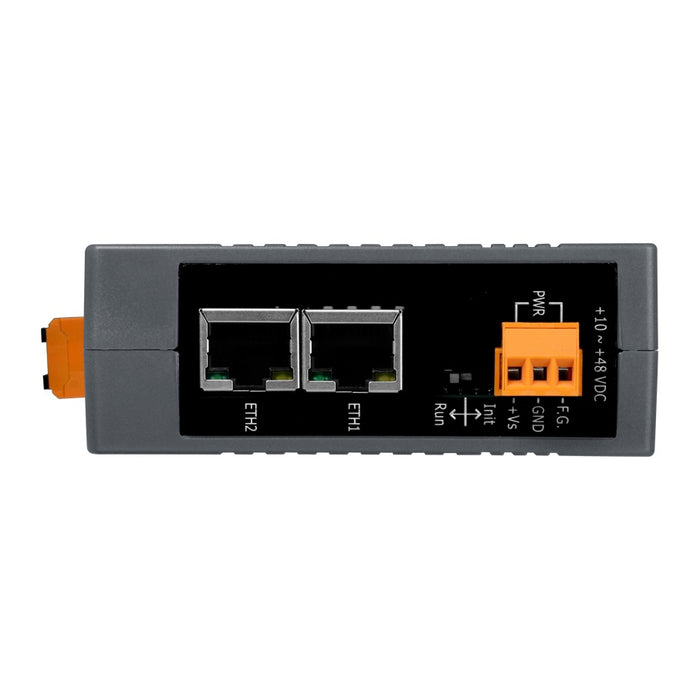

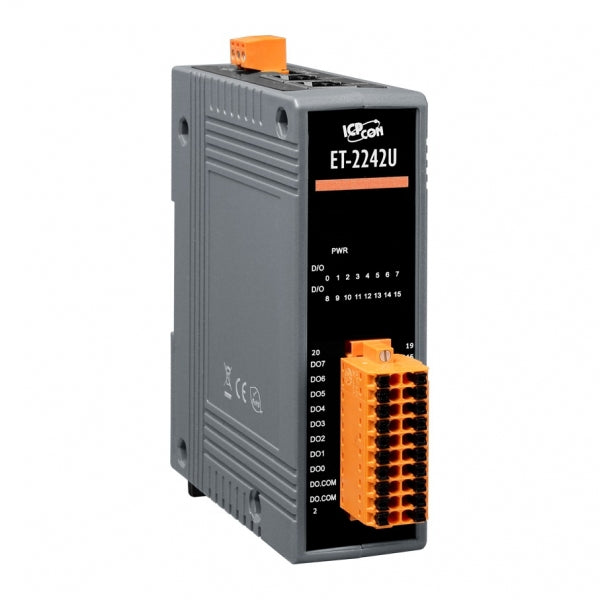

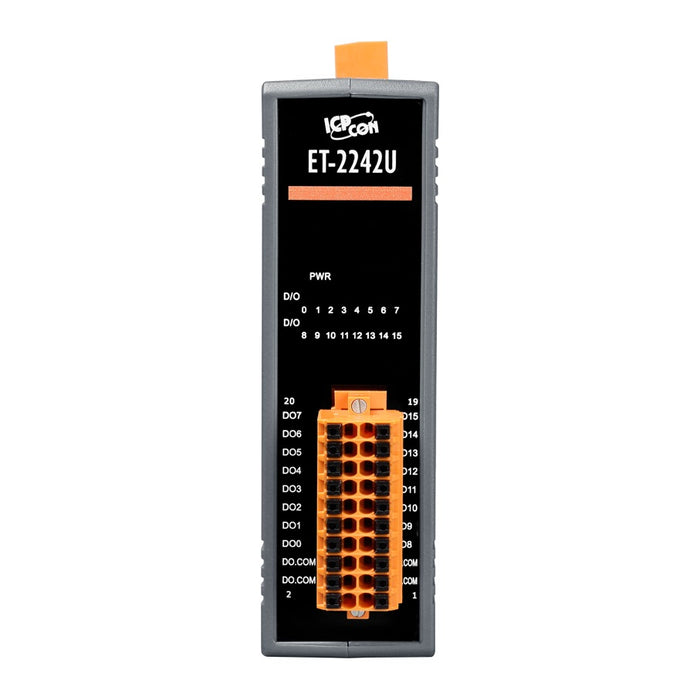

ET-2242U

Name: ET-2242U
Brand: ICP DAS
SKU: 07825200
Availability: InStock

ICP DAS

Ціна за запитом

Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Sink-/Source-type Digital Output (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Ethernet
10/100 Mbit/s	2
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output	16
Type	Open collector, Open emmiter
Sink/Source	Sink, Source
Output voltage	3.5~80 V
Max. load current	500 mA
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...48 V
Dimensions and weight
Width	33 mm
Depth	127 mm
Height	99 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
