Specification
Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall, DIN-Rail mount |
Digital Input | |
| Total channels of digital input | 6 |
| Type | Wet contact |
| Level of Logic "0" | 0~3.5 V |
| Level of Logic "1" | 10~50 V |
| Sink/Source | Sink, Source |
| Max frequency | 3 kHz |
| Counter | 3KHz |
Digital Output | |
| Total channels of digital output | 6 |
| Type | Electromagnitic relay |
| Relay (Form A) | 6 |
| Contact rating of relay (Form A) | 5A@250V AC, 5A@30V DC |
Supported Protocols | |
| Industrial Protocols | Modbus TCP server, Modbus UDP slave |
Additional Functions | |
| Watchdog timer type | Hardware, Software |

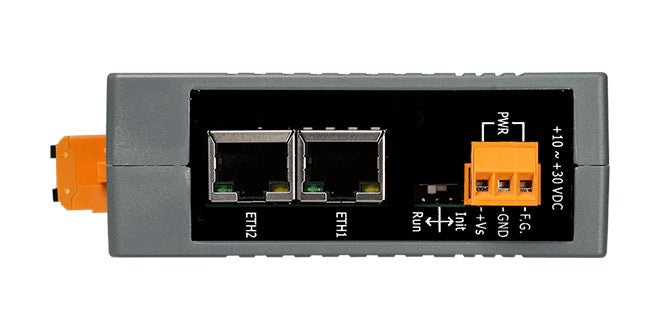

System Power Input | |
| Input Voltage DC | 10...30 V |
Dimensions and weight | |
| Width | 33 mm |
| Depth | 127 mm |
| Height | 99 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
Standards and Certifications | |
| EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
