ET-2261-16

Name: ET-2261-16
Brand: ICP DAS
SKU: 08083600
Availability: InStock

ICP DAS

Ціна за запитом

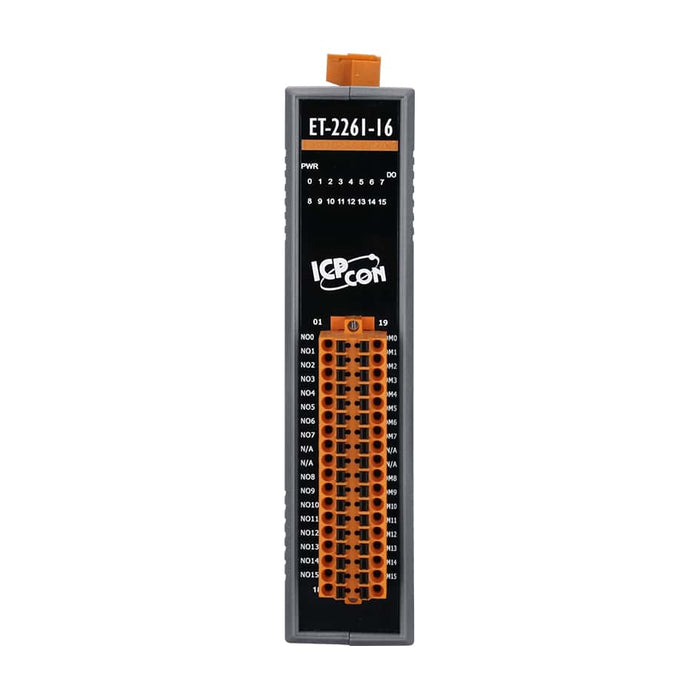

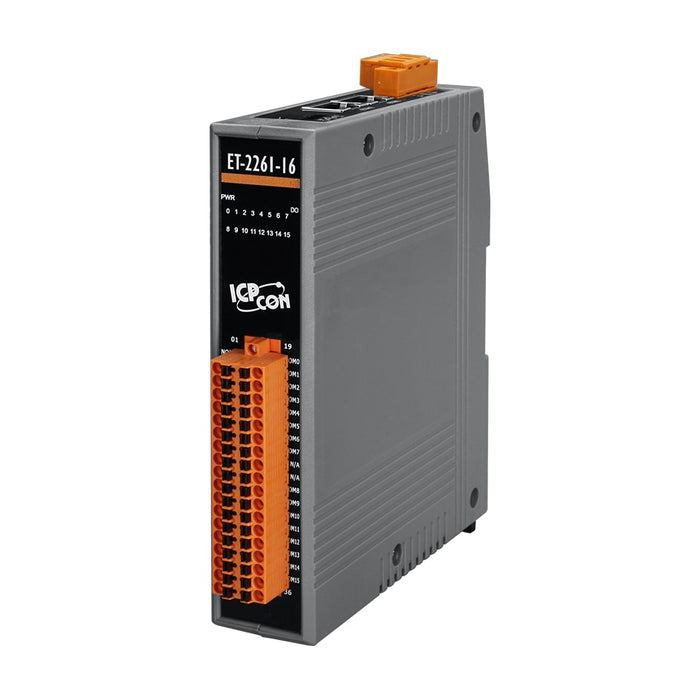

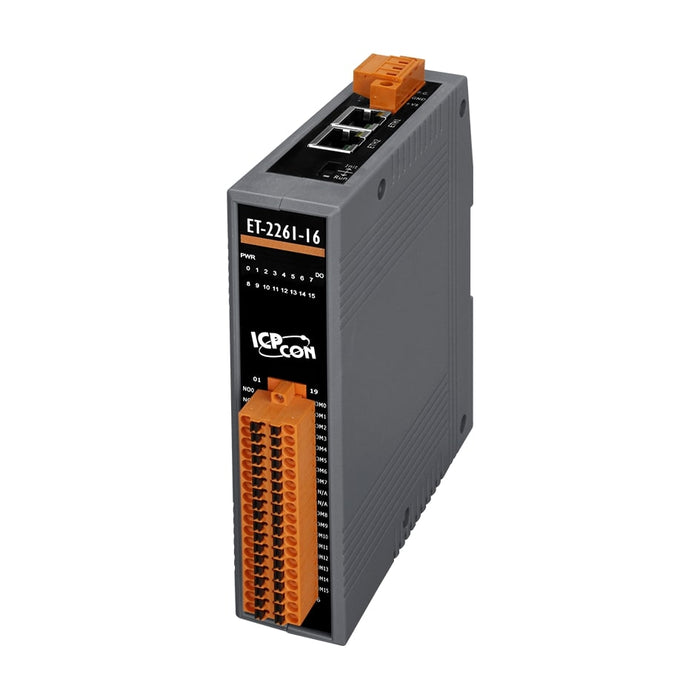

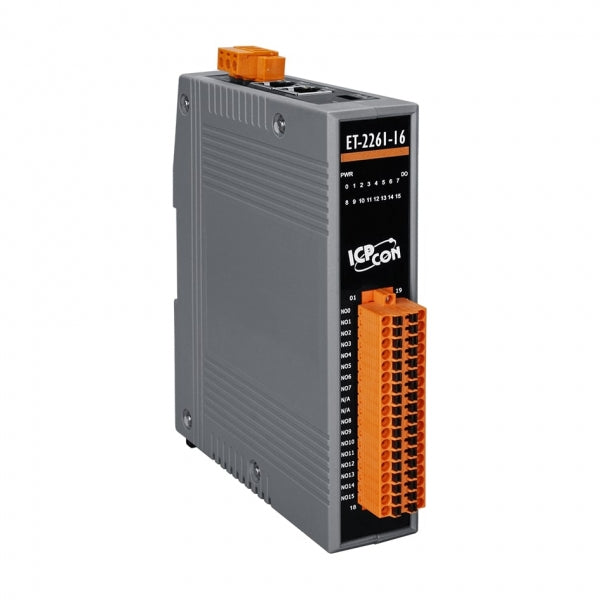

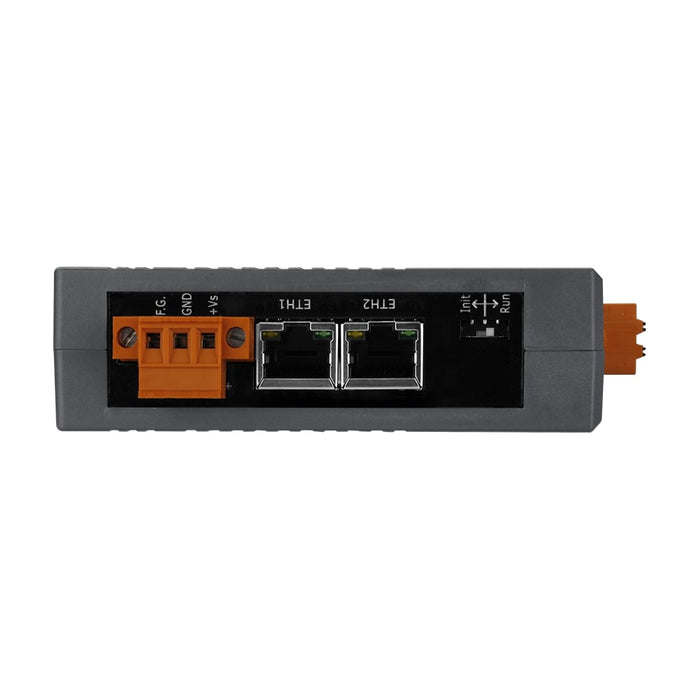

Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Power Relay Output

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Ethernet
10/100 Mbit/s	2
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output	16
Type	Electromagnitic relay
Relay (Form A)	16
Contact rating of relay (Form A)	5A@250V AC
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...48 V
Dimensions and weight
Width	31 mm
Depth	157 mm
Height	129 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
