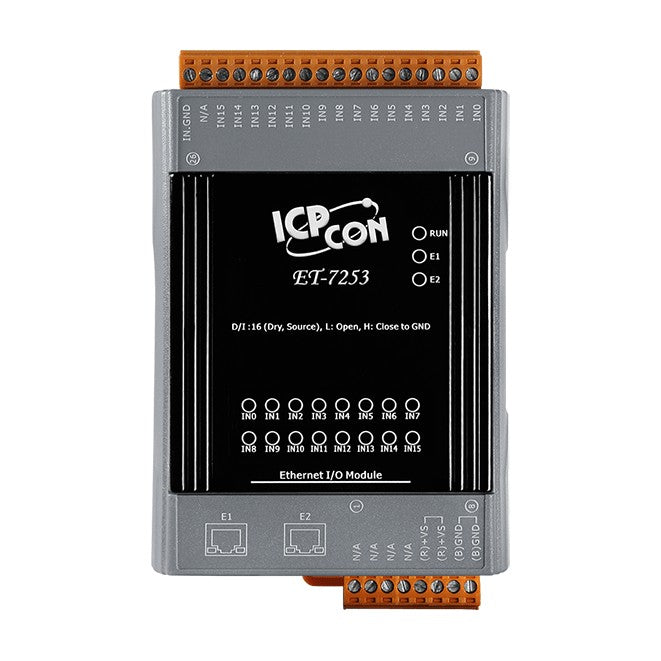

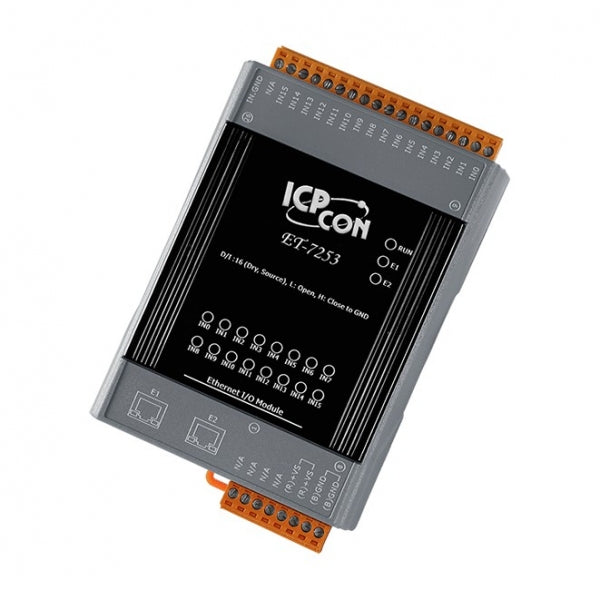

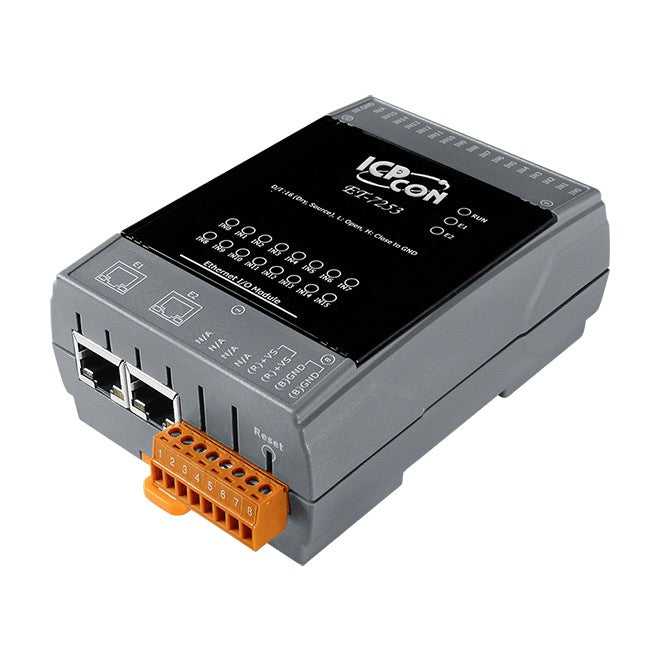

ET-7253

Name: ET-7253
Brand: ICP DAS
SKU: 06542200
Availability: InStock

ICP DAS

Ціна за запитом

Ethernet I/O Module with 2-port Ethernet Switch, with 16-ch DI (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Digital Input
Total channels of digital input	16
Type	Dry contact
Sink/Source	Source
Counter capacity	32 Bit
Max frequency	0.1 kHz
Counter	100Hz, 32 bit
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus UDP slave
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	76 mm
Depth	38 mm
Height	120 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4

Документація
