F-8017C1

Name: F-8017C1
Brand: ICP DAS
SKU: 66217600
Availability: InStock

ICP DAS

Ціна за запитом

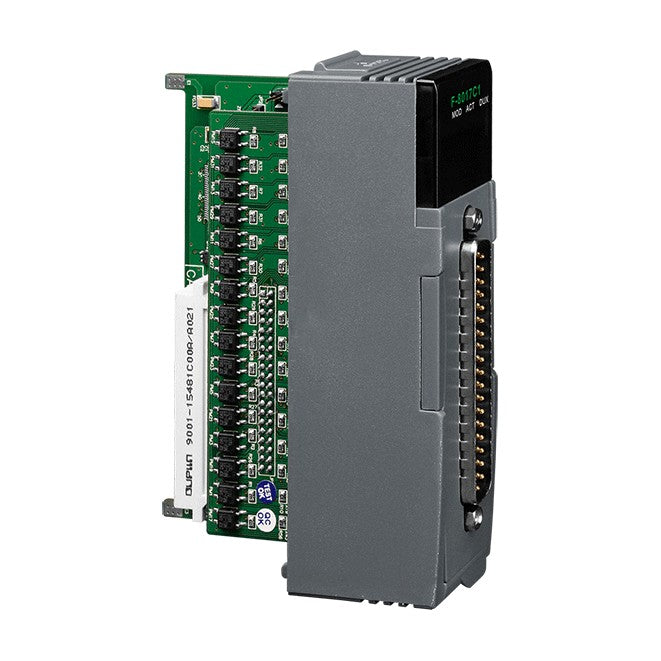

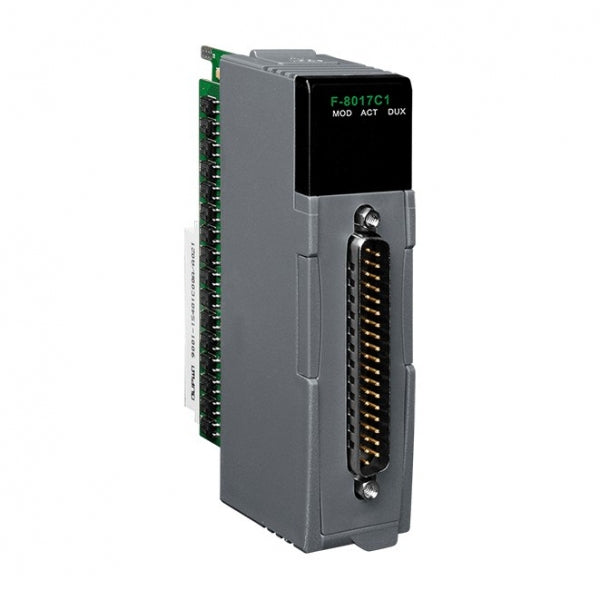

8-ch, Single/Duplex, INPUT 4mA...20mA, terminating/originating, Isolated, one COM for all AI

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Analog Input
Total channels of analog input	8
Number of Bits	16 Bit
Current range	4...20 mA
Sampling rate	500 Hz
Connectors
Connectors	DB37 Male
Dimensions and weight
Width	30 mm
Depth	85 mm
Height	115 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	IEC 61000-6-2, IEC 61000-6-4
EMS	IEC 61000-4-2, IEC 61000-4-4
