F-8028CH

Name: F-8028CH
Brand: ICP DAS
SKU: 66340700
Availability: InStock

ICP DAS

Ціна за запитом

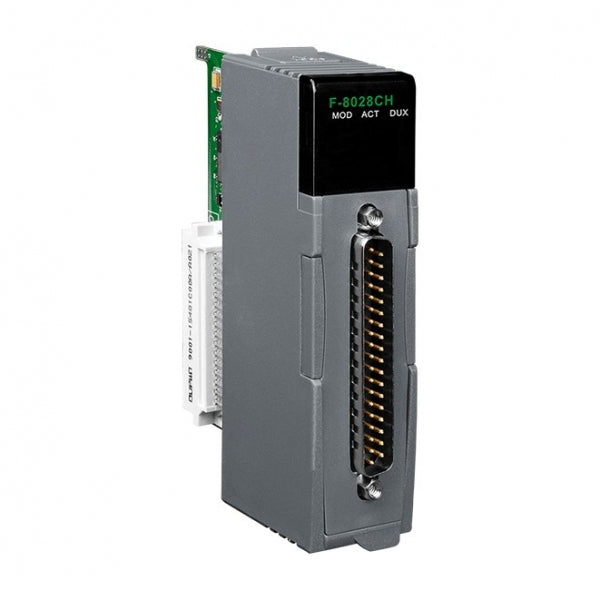

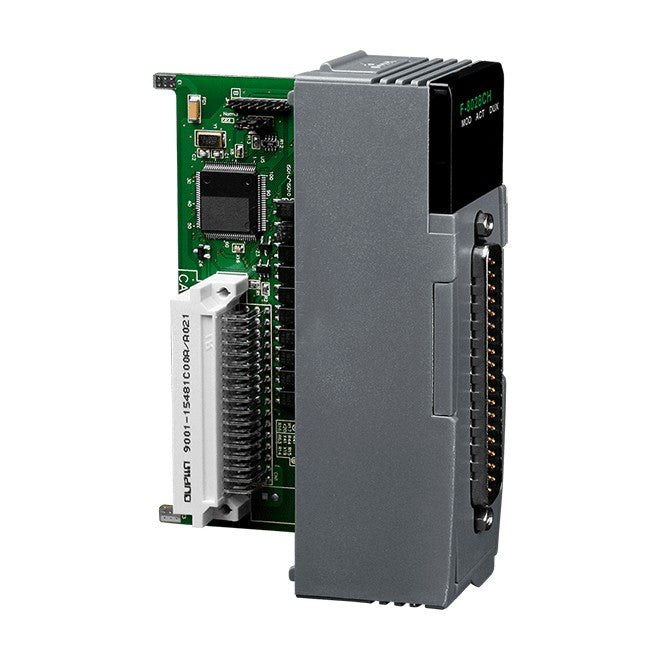

8-channel Isolated Analog Output Redundant Module with HART Master Interface (Gray Cover) (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Analog Output
Channels of analog input	8
DAC Bit Rate	16 Bit
Current range	4...20 mA
Connectors
Connectors	DB37 Male
Dimensions and weight
Width	30 mm
Depth	85 mm
Height	115 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	IEC 61000-6-2, IEC 61000-6-4
EMS	IEC 61000-4-2, IEC 61000-4-4
