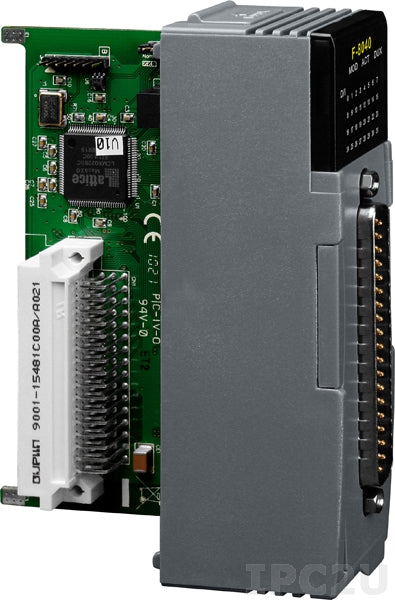

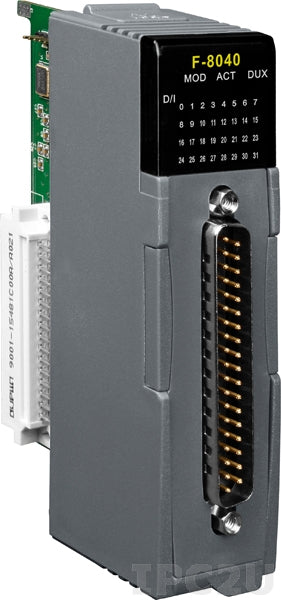

F-8040

Name: F-8040
Brand: ICP DAS
SKU: 66217800
Availability: InStock

ICP DAS

Ціна за запитом

32-ch, Single/Duplex, 24VDC in 5.1mA, Isolated, one COM for all DI, LED display

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Digital Input
Total channels of digital input	32
Type	Wet contact
Level of Logic "0"	0~11 V
Level of Logic "1"	18~30 V
Sink/Source	Sink, Source
Isolation of Digital Input	3000 V
Connectors
Connectors	DB37 Male
Dimensions and weight
Width	30 mm
Depth	85 mm
Height	115 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	IEC 61000-6-2, IEC 61000-6-4
EMS	IEC 61000-4-2, IEC 61000-4-4
