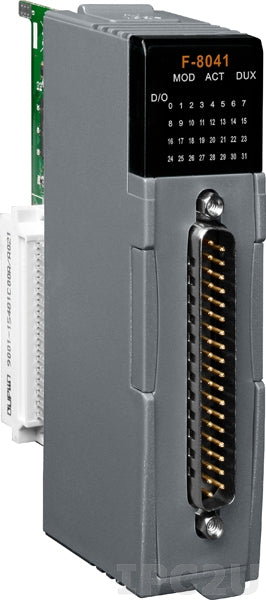

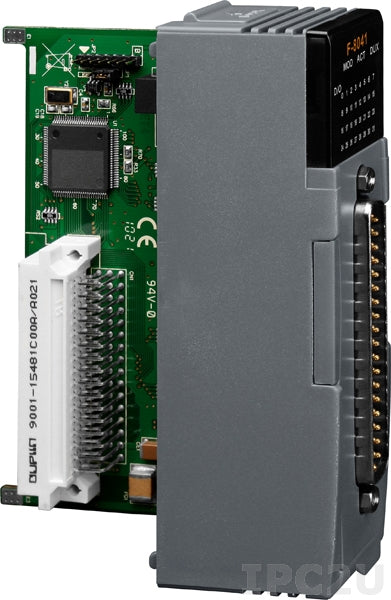

F-8041

Name: F-8041
Brand: ICP DAS
SKU: 66217900
Availability: InStock

ICP DAS

Ціна за запитом

32-ch, Single/Duplex, 100mA/channel, Isolated, one COM for all DO, LED Display

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Digital Output
Total channels of digital output	32
Type	Open collector
Sink/Source	Sink
Output voltage	36~36 V
Max. load current	500 mA
Connectors
Connectors	DB37 Male
Dimensions and weight
Width	30 mm
Depth	85 mm
Height	115 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	IEC 61000-6-2, IEC 61000-6-4
EMS	IEC 61000-4-2, IEC 61000-4-4
