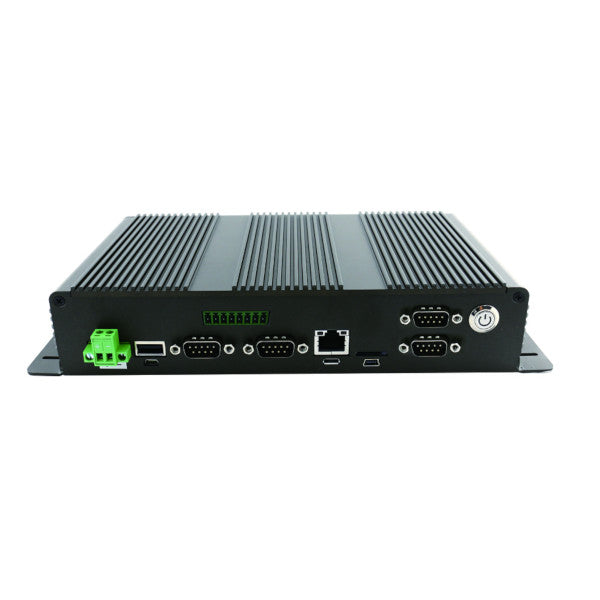

FA30SB3-210

Name: FA30SB3-210
Brand: Winmate
SKU: 56480300
Availability: InStock

Winmate

Ціна за запитом

Fanless Embedded System, NXP i.MX6 Dual-Core 1GHz SoC, 1GB LPDDR3 RAM, 16GB eMMC, MicroSD Slot, MicroHDMI, 1xCAN, 1xPoE LAN, 1xRS232, 1xUSB 2.0, 1xMicroUSB OTG, 1x8-bit DIO, 12VDC-in Terminal Block with PSU, -20..60C

Специфікація

Specification

Construction
Construction Chassis	Aluminium Chassis
Mounting Configuration	Desktop, Wall
CPU
Processor Installed	ARM Cortex A9
Max CPU frequency	1 GHz
Memory
Form-factor	DDR3
Default on Board Memory	1 GB
Maximum Memory	2 GB
Ethernet
Total Ethernet	1
10/100 Mbit/s	1
Interfaces
RS-232	1
USB Total	1
Industrial Interfaces
CAN Port	1
Drive interfaces
MicroSD	1
MicroSDHC	1
Connectors
Connectors	RJ45 Ethernet, Micro HDMI, USB type A
System Power Input
Input Voltage DC	9...24 V
Software
Operating System Compatibility	Android, Linux OS
Dimensions and weight
Width	224 mm
Height	47 mm
Depth	127 mm
Operating Conditions
Operating Temperature	-20...60 °C
