Construction | |
| Construction Chassis | Magnesium Alloy |
| Mounting Configuration | Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 7 " |
| Brightness | 1000 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Atom x6413E |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| ECC | No |
| Default on Board Memory | 4 GB |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB 2.0 | 2 |
Industrial Interfaces | |
| CAN Port | 2 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 1 |
| M.2 | 1 |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
| Controls | On/Off, Function Keys |
Connectors | |

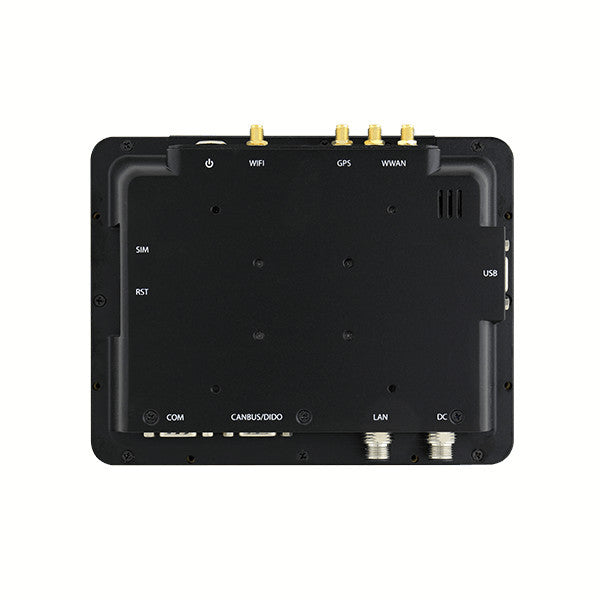

| Connectors | 2xDB9, SIM Card Slot, DB15 CAN Bus, M12 DC-in, M12 LAN |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 35 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Installed | Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 190 mm |
| Height | 146 mm |
| Depth | 40 mm |
Standards and Certifications | |
| Certifications | CE/FCC |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
