Construction | |
| Construction Chassis | Magnesium Alloy |
| Mounting Configuration | Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 400 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Wi-Fi | |
| Wi-Fi Standard | 802.11a/b/g/n/ac |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 2 |
| USB 2.0 | 1 |
| USB v3.x | 1 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| M.2 | 1 |
| SD Slots | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| 1st Storage Capacity | 64 GB |
Extension Slots | |
| SIM Card slots | 1 |
Antenna characteristics | |
| Cellular interfaces | 3G, 4G |
Additional Functions | |
| GPS | GPS |
LED / Controls | |
| LED | 1xOn/Off LED |
| Controls | On/Off, Control Buttons |
Connectors | |

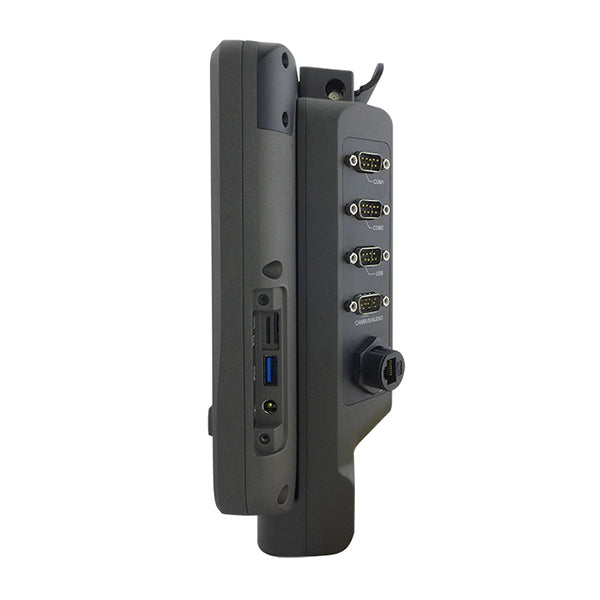

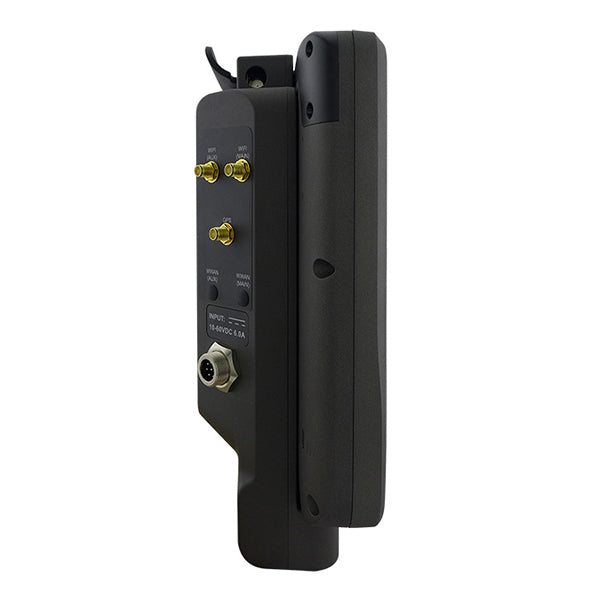

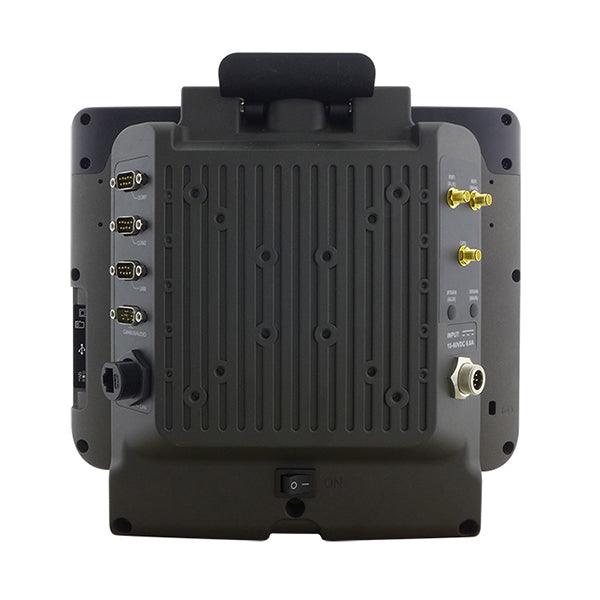

| Connectors | 4xDB9, RJ45 Ethernet, DC Input, SIM Card Slot, SD card slot |
System Power Input | |
| Input Voltage DC | 10...60 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 84 W |
Software | |
| Operating System Installed | Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 268 mm |
| Height | 214 mm |
| Depth | 84 mm |
Operating Conditions | |
| Operating Temperature | -30...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Safety | UL 60950-1, EN 60950-1 |
