Construction | |

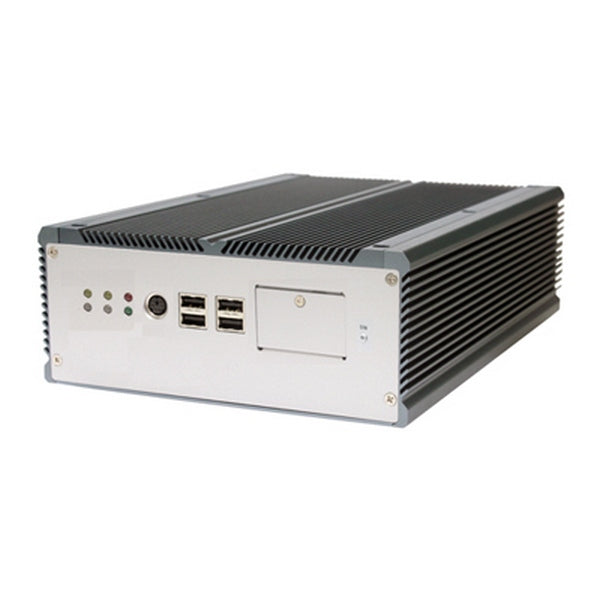

| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| Socket | PGA988 |
| CPU Support Type | Celeron, Core i5, Core i7 |
Chipset | |
| Chipset | Intel QM57 |
Memory | |
| Form-factor | DDR3 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel WG82574L |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/485 | 2 |
| USB Total | 8 |
| USB 2.0 | 8 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 1 |
Extension Slots | |
| Total | 2 |
| PCI Express x8 | 1 |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

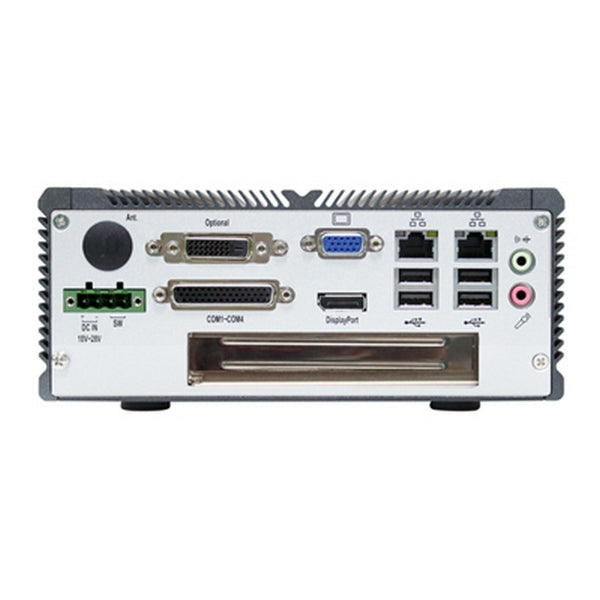

| Connectors | DB44, DVI-D, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, Display Port, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 10...28 V |
| Power Consumption | 50 W |
Software | |
| Operating System Compatibility | Windows XP Embedded, Windows Embedded Standard 7, Windows 7 Professional |
Dimensions and weight | |
| Width | 195 mm |
| Height | 90 mm |
| Depth | 268 mm |
Operating Conditions | |
| Operating Temperature | -20...55 °C |
| Vibration | 3 Grms/5~500Hz/random operation |
| Shock | Operating 40G (11ms). Non-operating 60G with CFast/SSD |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
