Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Wall |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Raptor Lake |
| Socket | LGA1700 |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9 |
Chipset | |
| Chipset | Intel H610E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | VGA, DisplayPort, DVI-D |
Ethernet | |
| Total Ethernet | 3 |
| 2,5 Gbit/s | 3 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 4 |
| USB Total | 6 |
| USB v3.x | 6 |
Digital Input-Output | |
| Channels of DIO | 16 |
Drive interfaces | |
| SATA 3 | 2 |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 5 |
| M.2 | 2 |
| M.2 Form Factor | 3052 B, 2230 E |
| Mini-PCIe/Mini Card | 1 |
| PCI | 2 |
| SIM Card slots | Yes, 2 |
LED / Controls | |
| LED | 1xHDD LED, WWAN LED |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

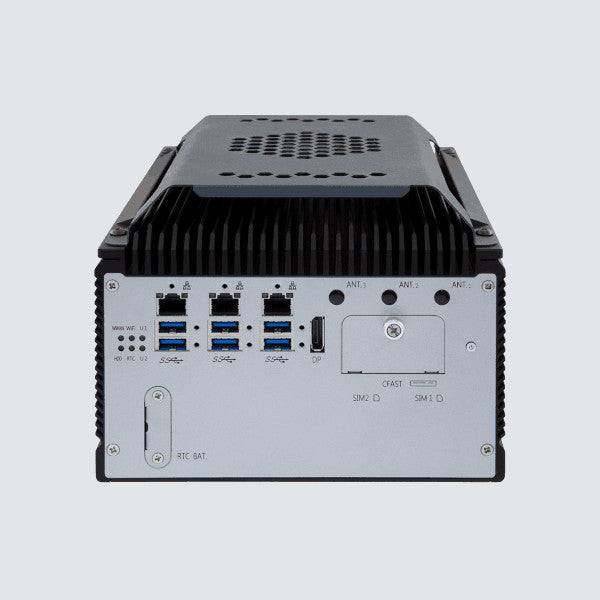

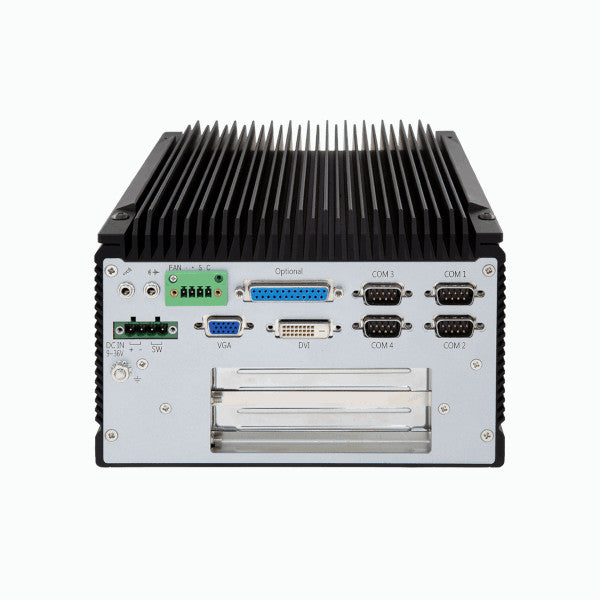

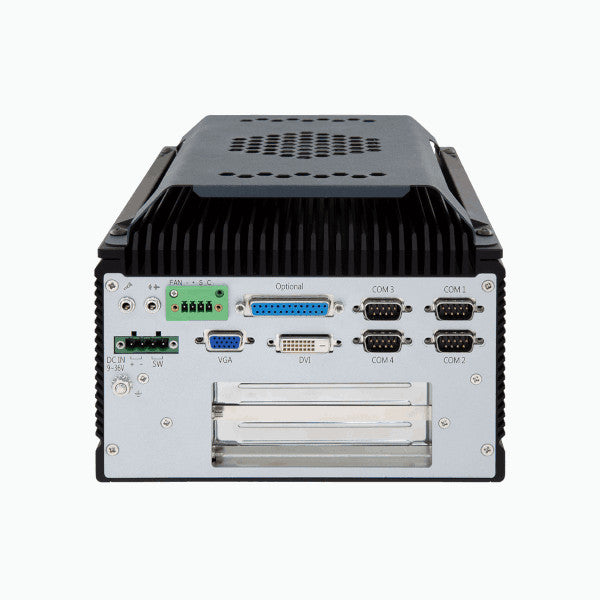

| Connectors | 4xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 1xDB25 DIO, 2xSIM Card Slot, CFast slot |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 65 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Ubuntu 20.04 |
Dimensions and weight | |
| Width | 268 mm |
| Height | 195 mm |
| Depth | 125 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
| Humidity | 10-95% |
| Vibration | 3 Grms/5~500Hz/random operation w/ SSD |
| Shock | Operating 40G (11ms). Non-operating 60G with SSD |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
