Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fan |
CPU | |
| СPU Generation/Family | Comet Lake |
| Socket | LGA1200 |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9 |
Chipset | |
| Chipset | Intel W480E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | Yes |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
| Interfaces | VGA, HDMI |
Ethernet | |
| Controller Type | Intel WGI219LM 10/100/1000 Mbps, Intel WGI225LM |
| Total Ethernet | 8 |
| 10/100/1000 Mbit/s | 1 |
| 2,5 Gbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 2 |
| USB v3.x | 2 |
Digital Input-Output | |
| Channels of DIO | 32 |
Digital Input | |
| Isolation DIO | Yes |
Drive interfaces | |
| SATA 3 | 2 |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage External | 2 |
Extension Slots | |
| Total | 6 |
| PCI Express x16 | 2 |
| PCI Express x4 | 1 |
| M.2 | 2 |
| M.2 Form Factor | 2230 E, 3052 B |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 2 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
Additional Functions | |
| GPS | Optional |
| Watchdog timer type | Software |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

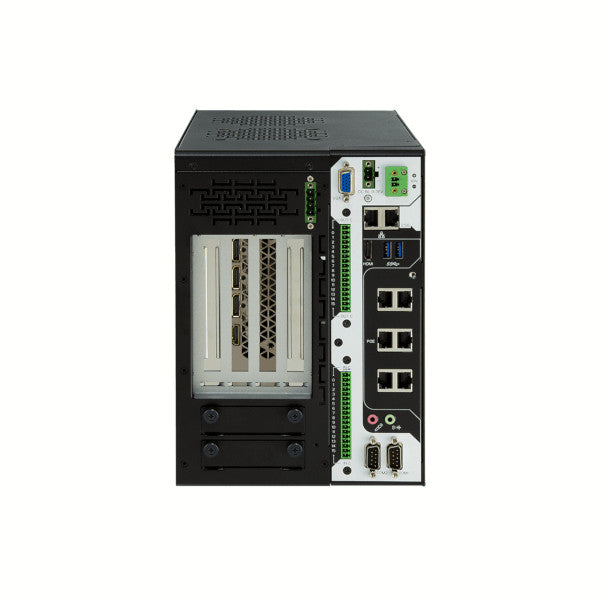

| Connectors | 2xDB9, DB15 VGA, HDMI, Mic In, Line Out, DC input (terminal block), 8xRJ45 Ethernet, 2xUSB, 2xDIO (terminal block) |
System Power Input | |
| Input Voltage DC | 12...36 V |
| Backup input DC supply voltage | 12~36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Linux kernel 4.x |
Dimensions and weight | |
| Width | 181 mm |
| Height | 320 mm |
| Depth | 250 mm |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
| Humidity | 10-95% |
| Vibration | Comply with MIL-STD-810G. Method 514.6. Category 4 w/ SSD |
| Shock | Comply with MIL-STD-810G. Method 516.6.Table 516.6-II. 20G |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
