Construction |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Desktop, 19" Rackmount, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Material Front Side (Panel) | Aluminum |
Display |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 400 Cd/m2 |
| Contrast Ratio | 700~1 |
| Input Interface | VGA, DVI-D |
Touch Screen |
| Touch Screen Type | Resistive |
| Interface | RS-232, USB |
LED / Controls |
| LED | Power LED |
| Controls | On/Off, KeyPad |
Connectors |

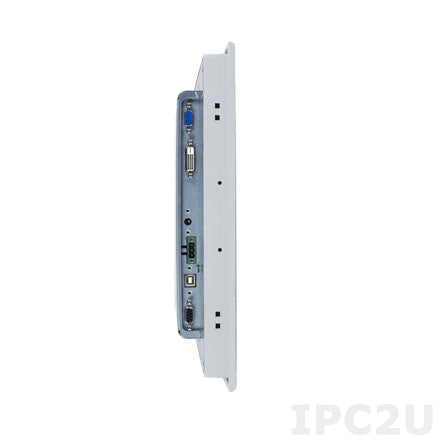

| Connectors | DB9, DVI-D, DB15 VGA, 1xUSB, DC Input, DC input (terminal block) |
System Power Input |
| Input Voltage DC | 10...30 V |
Power Supply |
| Supported Types of Power Supply | External power adapter AC/DC |
Operating Conditions |
| Operating Temperature | 0...50 °C |
| Vibration | 5~500 Hz. 1 Grms (Operating. Random) |
Dimensions and weight |
| Width | 449.9 mm |
| Height | 315.6 mm |
| Depth | 50.5 mm |
Standards and Certifications |
| Certifications | CE, FCC Class A |
| Safety | UL/cUL |
