Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, 19" Rackmount, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Material Front Side (Panel) | Aluminum |
Display | |
| Display Type | LCD TFT |
| Diagonal | 19 " |
| Maximum resolution | 1280x1024 Dots |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | VGA, DVI-D |
Touch Screen | |
| Touch Screen Type | Resistive |
| Interface | RS-232, USB |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, KeyPad |

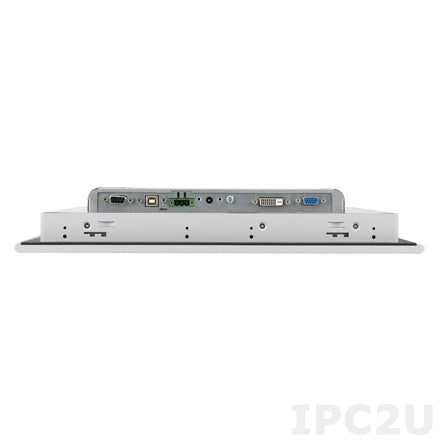

Connectors | |
| Connectors | DB9, DB15 VGA, 1xUSB, DC Input, DC input (terminal block), USB type B |
System Power Input | |
| Input Voltage DC | 10...30 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | 5~500 Hz. 1 Grms (Operating. Random) |
Dimensions and weight | |
| Width | 481.93 mm |
| Height | 384.6 mm |
| Depth | 59 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | CCC, UL, BSMI |
