Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100, Arm |
| Protection Level of Front Side (Panel) | IP66 |
| Material Front Side (Panel) | Aluminum |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1366x768 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 500~1 |
| Input Interface | VGA, DVI-D |
Touch Screen | |
| Touch Screen Type | Capacitive |
| Interface | RS-232, USB |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, KeyPad |
Connectors | |

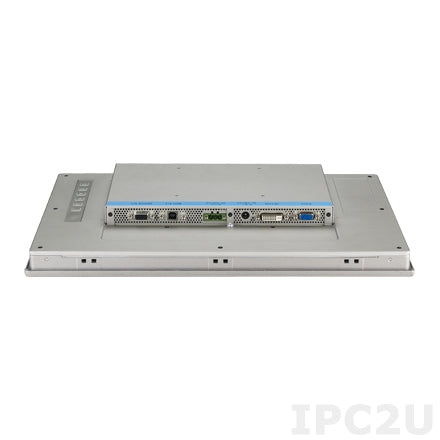

| Connectors | DB9, DVI-D, DB15 VGA, 1xUSB, DC Input, 1x5-pin Phoenix Contact |
System Power Input | |
| Input Voltage DC | 12...24 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 57 W |
| Input Voltage AC | 100...240 V |
| Input Voltage DC | 12...12 V |
Operating Conditions | |
| Operating Temperature | 0...55 °C |
| Vibration | 5 ~ 500 Hz. 1 Grms (Operating. Random) |
Dimensions and weight | |
| Width | 419.7 mm |
| Height | 269 mm |
| Depth | 47.7 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | CCC, UL |
