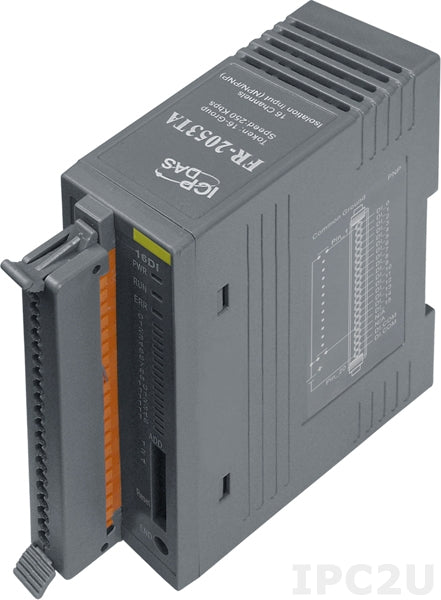

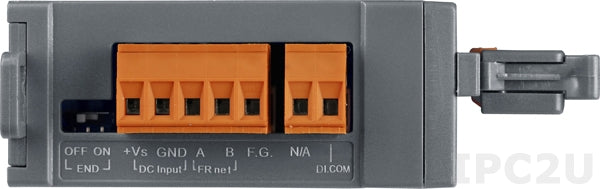

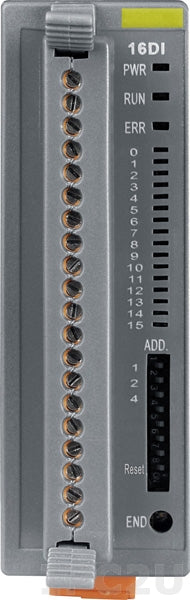

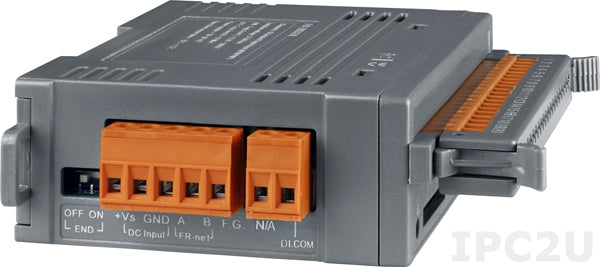

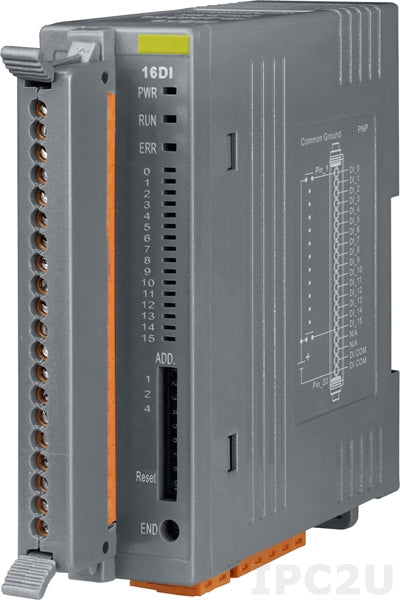

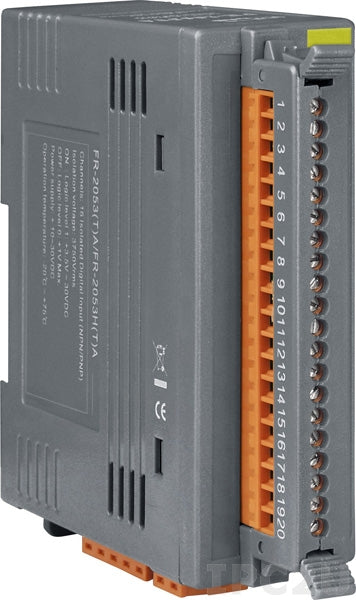

FR-2053iTA

Name: FR-2053iTA
Brand: ICP DAS
SKU: 09507000
Availability: InStock

ICP DAS

Ціна за запитом

FRnet I/O Module with 16-channel Isolated DI (3.5~30VDC) and Isolated Communication Line

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Industrial Interfaces
Frnet Port	1
Digital Input
Total channels of digital input	16
Type	Wet contact
Level of Logic "0"	0~1 V
Level of Logic "1"	3.5~30 V
Sink/Source	Sink, Source
Isolation of Digital Input	3750 V
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	33 mm
Depth	102 mm
Height	107 mm
Operating Conditions
Operating Temperature	-25...75 °C
