Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Panel, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP20 |
| Type | Fanless |

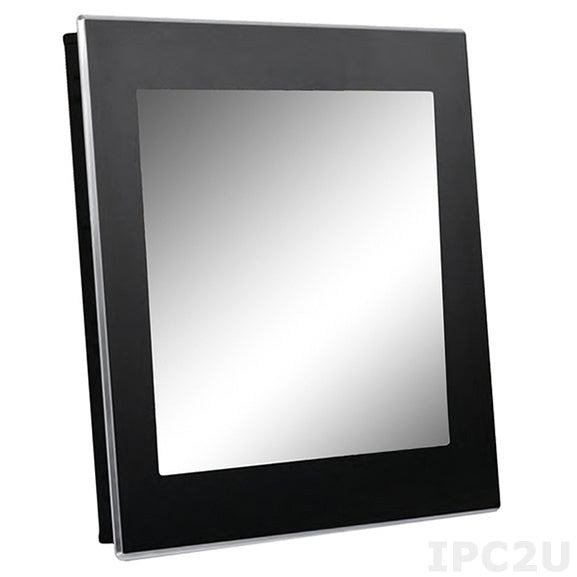

Display | |
| Display Type | LCD |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 450 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Chipset | |
| Chipset | Intel NM10 |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 4 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| CompactFlash Slots | 1 |
| SD Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
| Controls | On/Off, 1xReset |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

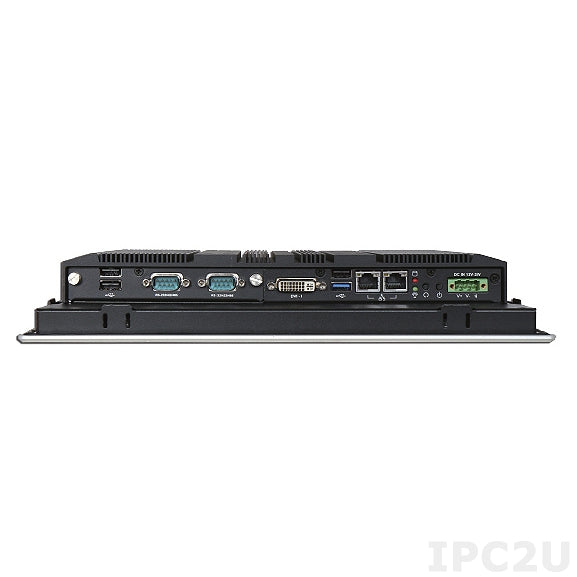

| Connectors | 2xDB9, DVI-I, 2xRJ45, 4xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Linux OS |
Dimensions and weight | |
| Width | 425.4 mm |
| Height | 330 mm |
| Depth | 55.6 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
| Vibration | 1.0G (SD/CF/SSD) and 0.5G (HDD) . Power on & 2.16G. Packaged; 5~500Hz |
| Shock | 15G peak acceleration. 11 ms (Power on condition) |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
