Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Panel, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP20 |
| Type | Fanless |
Display | |
| Display Type | LCD |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 450 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Atom x7-E3950 |
| Max CPU frequency | 2 GHz |
Memory | |
| Form-factor | DDR3L |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| USB Total | 3 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
| Controls | On/Off, 1xReset |
Connectors | |

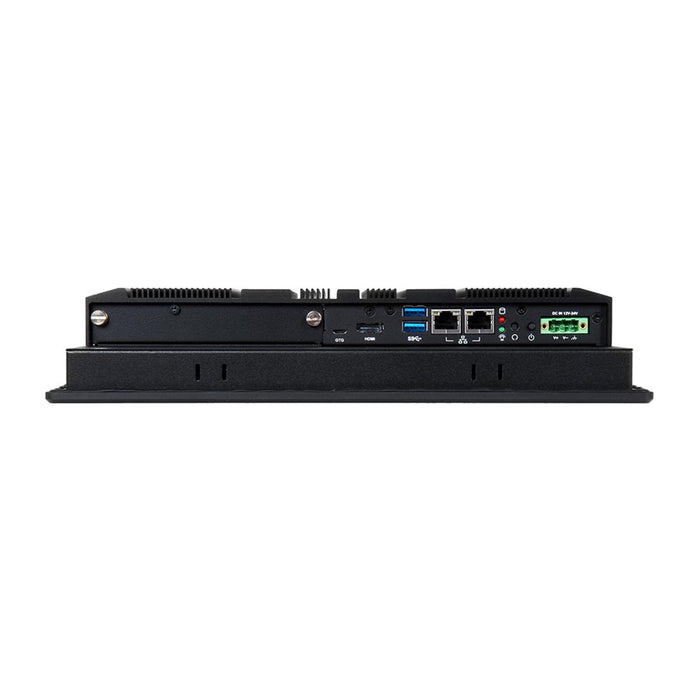

| Connectors | HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB |
System Power Input | |
| Input Voltage DC | 12...34 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 384 mm |
| Height | 310 mm |
| Depth | 56.6 mm |
Operating Conditions | |
| Operating Temperature | -25...60 °C |
| Vibration | 1.0G (SSD) and 0.5G (HDD) . Power on ; 2.16G. Packaged; 5~500Hz. IEC 60068-2-6 |
| Shock | 15G peak acceleration. 11 ms (Power on condition). IEC 60068-2-27 |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| EMS | EN 61000-6-2, EN 61000-6-4 |
| Safety | IEC 62368-1 |
