Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | 19" Rackmount |
| Height | 2 U |

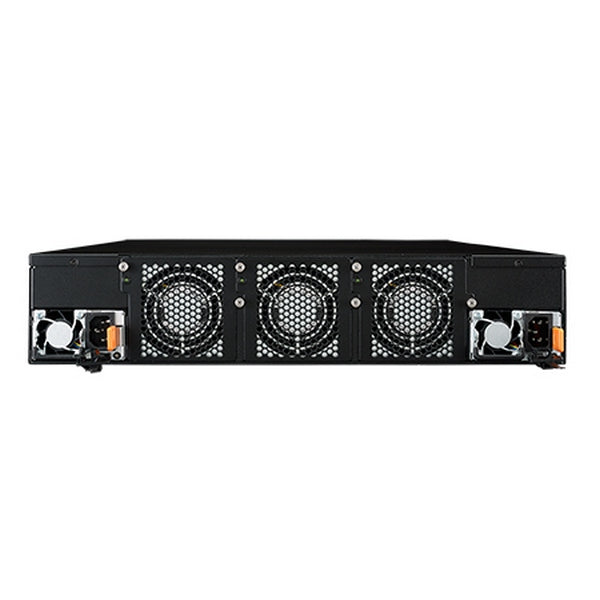

| Type | Fans |
CPU | |
| Socket | LGA 3647-P0 |
| CPU Support Type | Xeon |
| Number of CPU | 2 |
Chipset | |
| Chipset | Intel C622 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 24xDIMM |
| ECC | Yes |
| Maximum Memory | 1563 GB |
| Assembly | Removable |
Ethernet | |
| Controller Type | Intel i210 10/100/1000 Mbps |
| Total Ethernet | 6 |
| 10/100/1000 Mbit/s | 4 |
| 10 Gbit/s | 2 |
Interfaces | |
| USB Total | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 12 |
| PCI Express x8 | 2 |
| M.2 | 2 |
LED / Controls | |
| LED | 1xHDD LED, 1xOn/Off LED |
| Controls | Control Buttons |
System Power Input | |
| Input Voltage AC | 100...240 V |
Software | |
| Operating System Compatibility | Linux OS |
Dimensions and weight | |
| Width | 438 mm |
| Height | 88 mm |
| Depth | 684.15 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Vibration | 0.3 Grms. 5-500Hz. 1hr/axis |
| Shock | 10G. 11ms |
Standards and Certifications | |
| Certifications | CE, FCC |
