Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Panel, Wall |
| Protection Level of Front Side (Panel) | IP65, NEMA 4 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1366x768 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 400 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| Socket | LGA1151 |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium |
Chipset | |
| Chipset | Intel H310 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 1 |
Extension Slots | |
| Total | 2 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | 1xOn/Off LED |
| Controls | Control Buttons |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

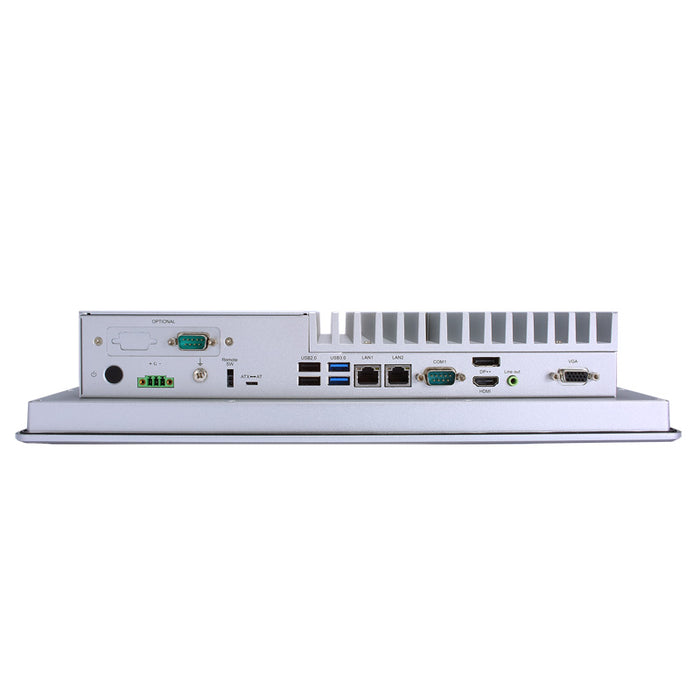

| Connectors | 2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 12...24 V |
| Power Consumption | 70 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 396.8 mm |
| Height | 247.1 mm |
| Depth | 53 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | 1.0G |
Standards and Certifications | |
| Certifications | CE |
