Construction | |
| Construction Chassis | Aluminium Chassis |

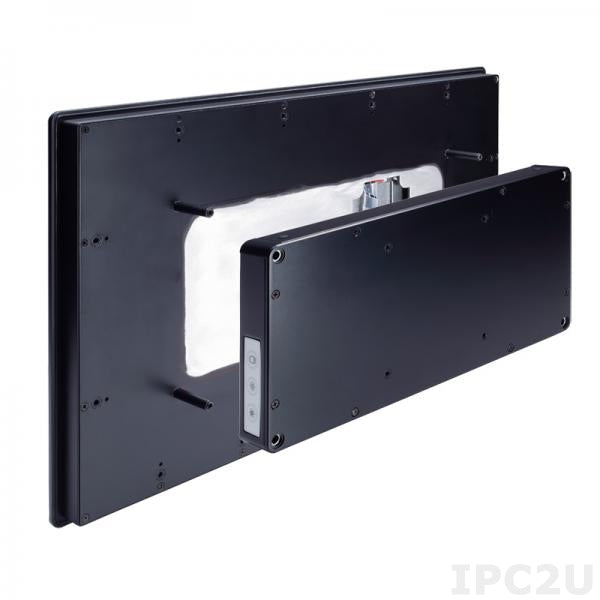

| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 18.5 " |
| Maximum resolution | 1366x768 Dots |
| Brightness | 300 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, KeyPad |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

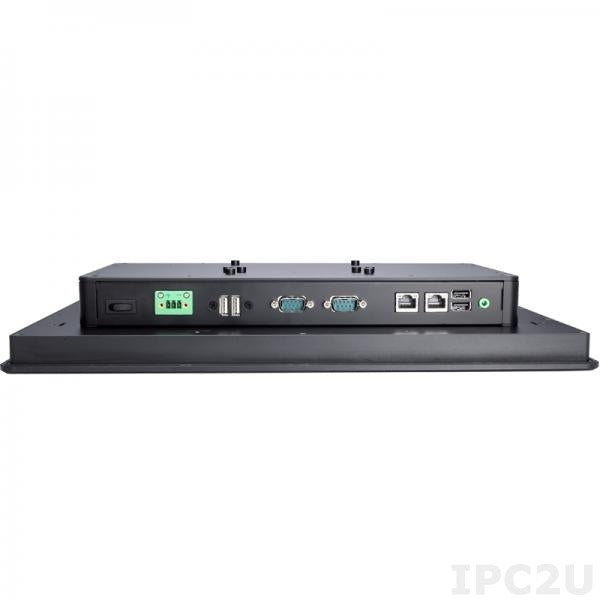

| Connectors | 2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8 |
Dimensions and weight | |
| Width | 460.8 mm |
| Height | 285 mm |
| Depth | 58.5 mm |
Operating Conditions | |
| Operating Temperature | -10...50 °C |
| Vibration | 2G. 10 ~ 500Hz. random for CFast |
Standards and Certifications | |
| Certifications | CE |
