Construction |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65, NEMA4 |
| Type | Fanless |

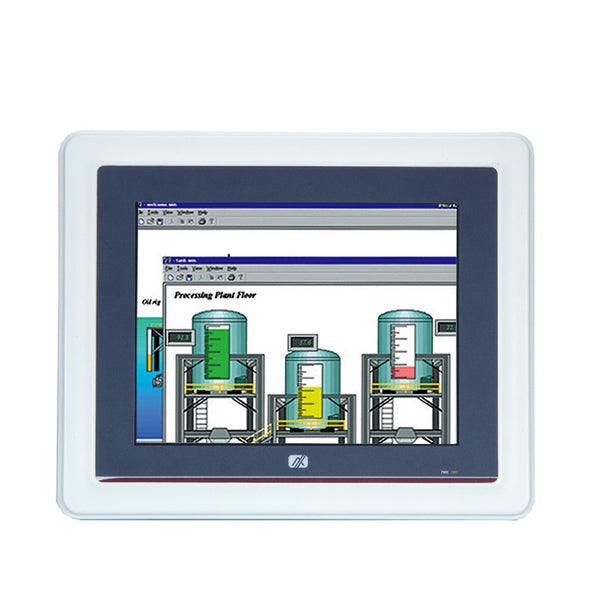

Display |
| Display Type | LCD TFT |
| Diagonal | 8.4 " |
| Maximum resolution | 800x600 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 350 Cd/m2 |
Touch Screen |
| Touch Screen Type | Resistive |
CPU |
| СPU Generation/Family | Braswell |
| Processor Installed | Intel Celeron N3060 |
| Socket | CPU onboard |
| Max CPU frequency | 2.48 GHz |
Chipset |
| Chipset | Intel Braswell SoC |
Memory |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic |
| Graphic Controller | Integrated in CPU |
Ethernet |
| Controller Type | Intel i211-AT 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Drive interfaces |
| mSATA | 1 |
Extension Slots |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
LED / Controls |
| LED | Power LED |
| Controls | On/Off |
Additional Functions |
| Watchdog timer type | Software |

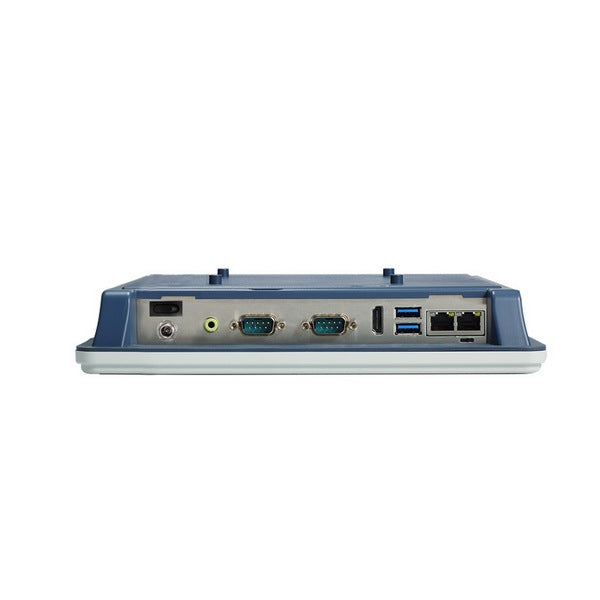

Connectors |
| Connectors | 2xDB9, HDMI, 2xRJ45, 2xUSB, Line Out, DC input (terminal block) |
System Power Input |
| Input Voltage DC | 9...36 V |
| Power Consumption | 25 W |
Power Supply |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 60 W |
| Supported Types of Power Supply | External power adapter AC/DC |
Software |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1 |
Dimensions and weight |
| Width | 250.7 mm |
| Height | 204.7 mm |
| Depth | 45.8 mm |
Operating Conditions |
| Operating Temperature | 0...45 °C |
| Vibration | 2G. 5~500Hz. random for CompactFlash |
Standards and Certifications |
| Certifications | CE |
