Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 800 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 2 |
| USB 2.0 | 2 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| mSATA | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | eMMC |
| 1st Storage Capacity | 16 GB |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, Control Buttons |
Connectors | |

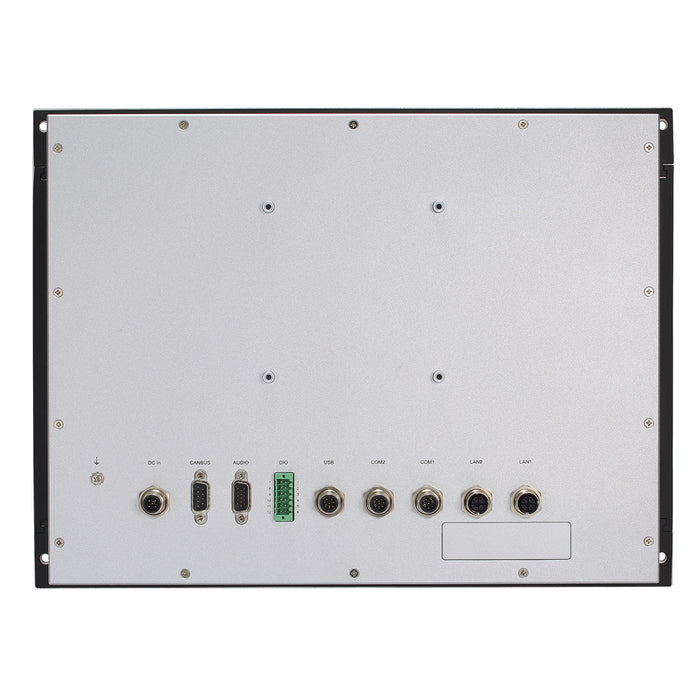

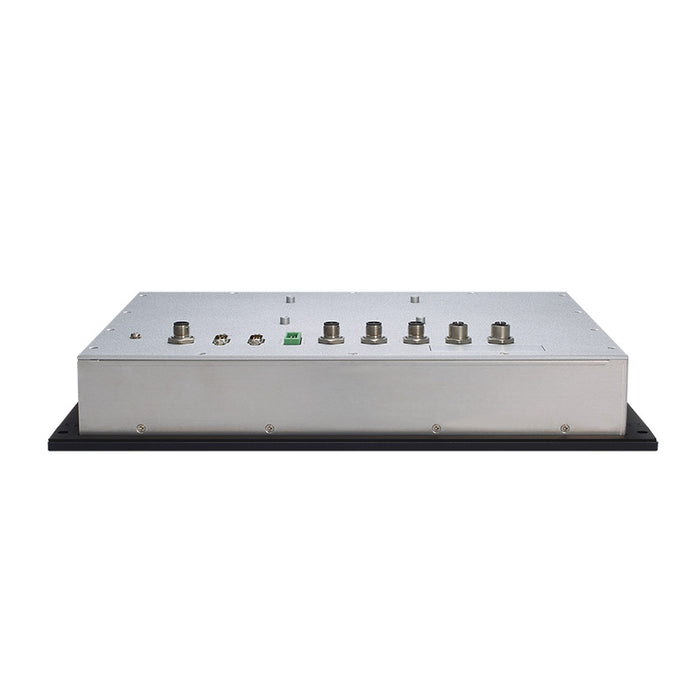

| Connectors | Audio, DIO (terminal block), DB15 CAN Bus, M12 USB, M12 DC-in, 2x8-pin M12 COM, 4x8-pin M12 LAN |
System Power Input | |
| Input Voltage DC | 24...110 V |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 400 mm |
| Height | 300 mm |
| Depth | 61.5 mm |
Operating Conditions | |
| Operating Temperature | -25...70 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Rolling Stock | EN 50155, IEC 61373, EN 45545, EN 50121-3-2 |
