Construction | |
| Construction Chassis | Stainless Steel |
| Mounting Configuration | Wall, Wall VESA 100 |
| Protection Level of Chassis | IP66, IP69K |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1280x800 Dots |
| Brightness | 400 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Kaby Lake |
| Processor Installed | Intel Core i5-7300U |
| Socket | CPU onboard |
| Max CPU frequency | 3.5 GHz |
Chipset | |
| Chipset | Intel Kaby Lake SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 4 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| Controls | On/Off |
Connectors | |

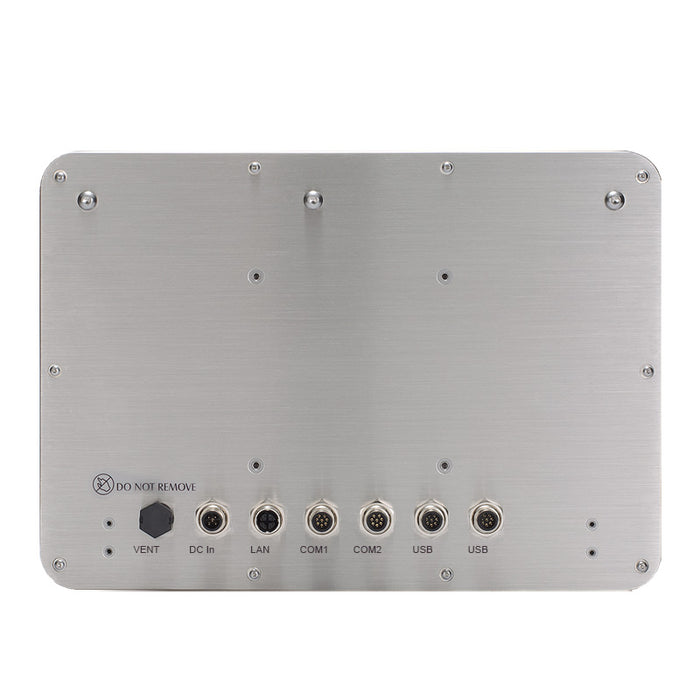

| Connectors | DC Input, M12 USB, 2x8-pin M12 COM, M12 LAN |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 56.5 W |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Windows 10 |
Dimensions and weight | |
| Width | 332 mm |
| Height | 55 mm |
| Depth | 234 mm |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
Standards and Certifications | |
| Certifications | CE |
