Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP66 |
| Protection Level of Chassis | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 420 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Atom E3827 |
| Max CPU frequency | 1.75 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 4 |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | Power LED |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

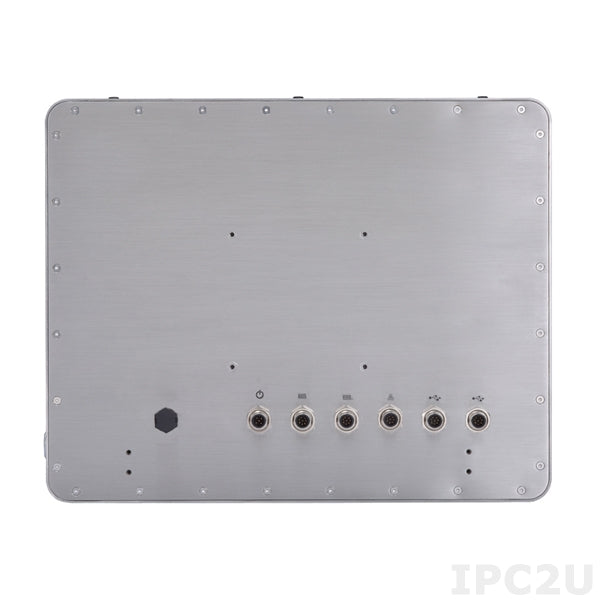

| Connectors | 6xM12 |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Windows 8.1 |
Dimensions and weight | |
| Width | 382 mm |
| Height | 305 mm |
| Depth | 55 mm |
Operating Conditions | |
| Operating Temperature | -20...55 °C |
| Vibration | 2G. 5 ~ 500Hz. random for 2.5" SSD; 2G. 5 ~ 500Hz. random for CompactFlash |
Standards and Certifications | |
| Certifications | CE |
