Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP66, IP69K |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 450 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Celeron N3350 |
| Max CPU frequency | 2.4 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB 2.0 | 2 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, KeyPad |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

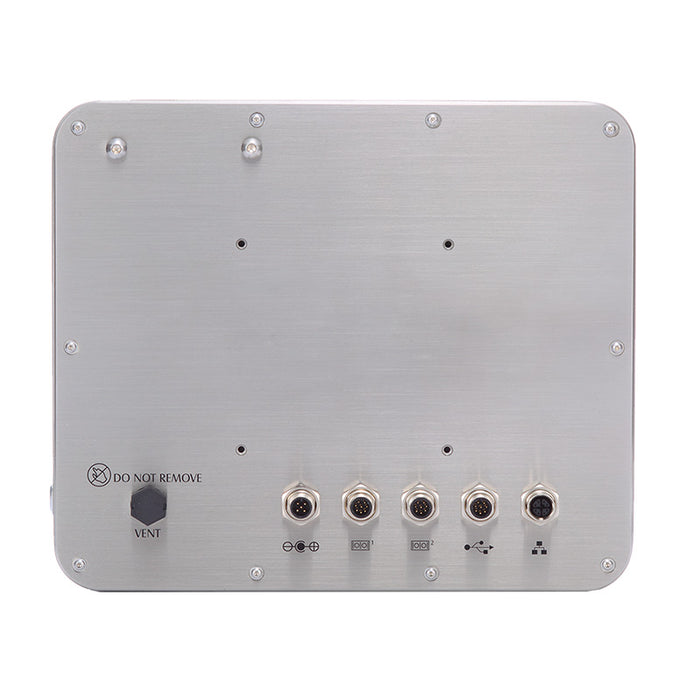

| Connectors | M12 DC-in, 2x8-pin M12 USB, 2x8-pin M12 COM, 8-pin M12 Ethernet |
System Power Input | |
| Input Voltage DC | 12...12 V |
| Power Consumption | 36 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 283.1 mm |
| Height | 239.5 mm |
| Depth | 55.2 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | 2G. 10 - 500Hz. random for SSD/mSATA |
Standards and Certifications | |
| Certifications | CE |
