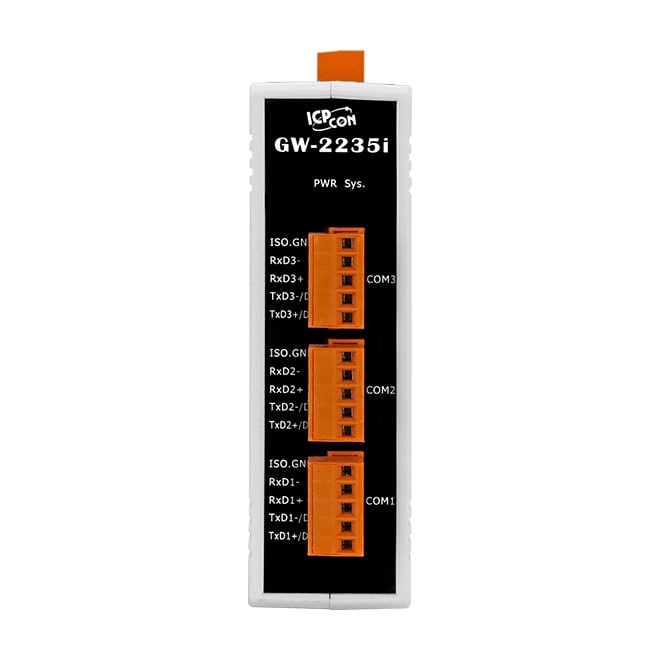

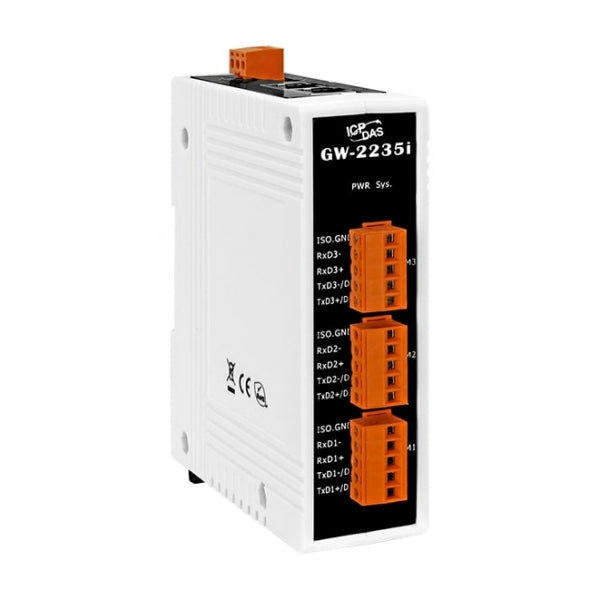

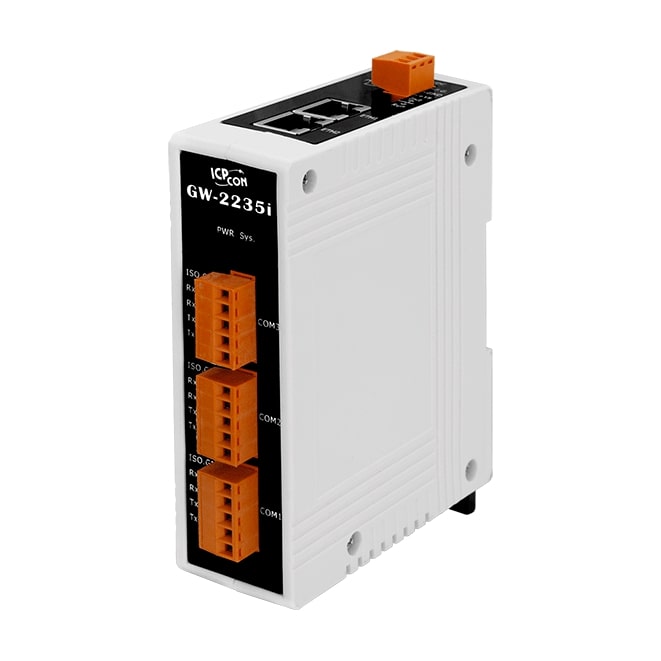

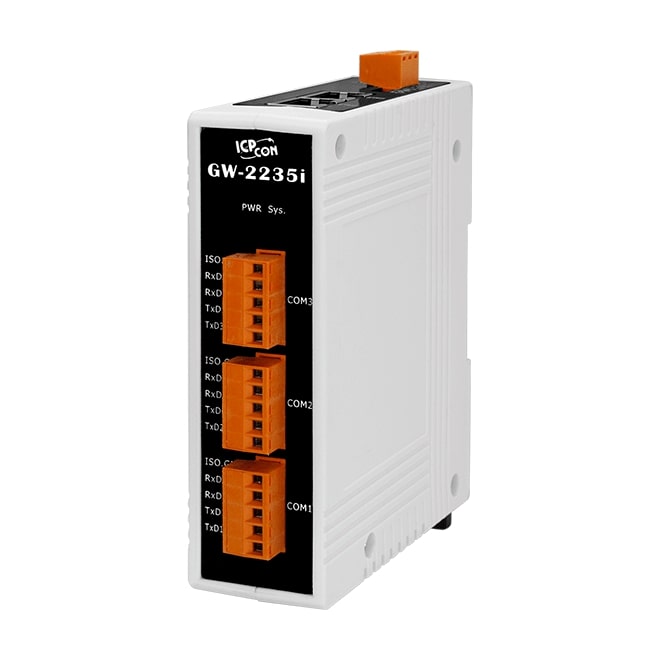

GW-2235i

Name: GW-2235i
Brand: ICP DAS
SKU: 09119400
Availability: InStock

ICP DAS

Ціна за запитом

Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 3 Isolated RS-422/485 Ports

Специфікація

Specification

Ethernet
Total Ethernet	2
10/100 Mbit/s	2
Interfaces
COM Total	3
RS-422/485	3
Isolation of COM Ports	3 kV (RS-422/485)
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus TCP client, Modbus RTU slave, Modbus RTU master, Modbus ASCII slave, Modbus ASCII master
System Power Input
Input Voltage DC	12...48 V
Power over Ethernet (PoE)	PoE, IEEE 802.3af
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Dimensions and weight
Width	33 mm
Depth	97 mm
Height	126 mm
