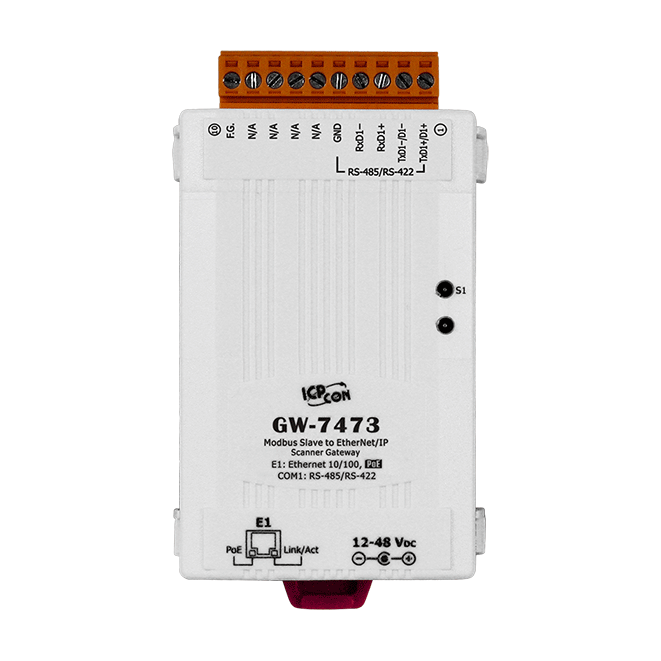

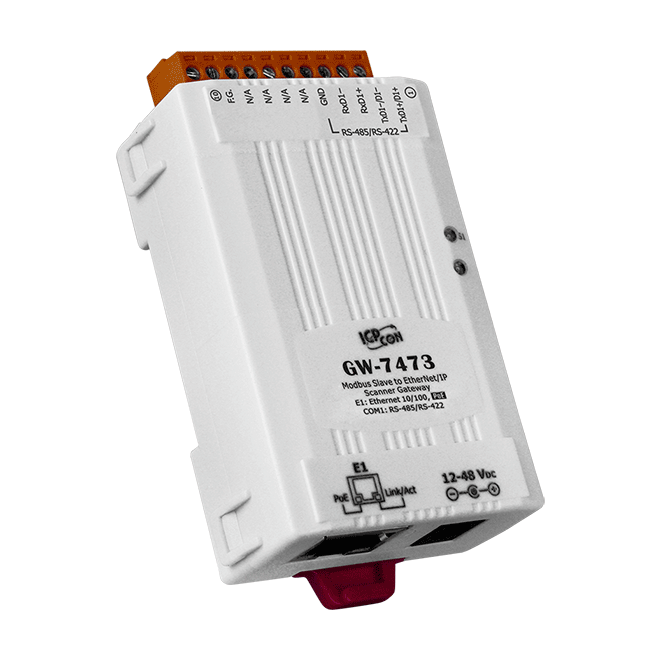

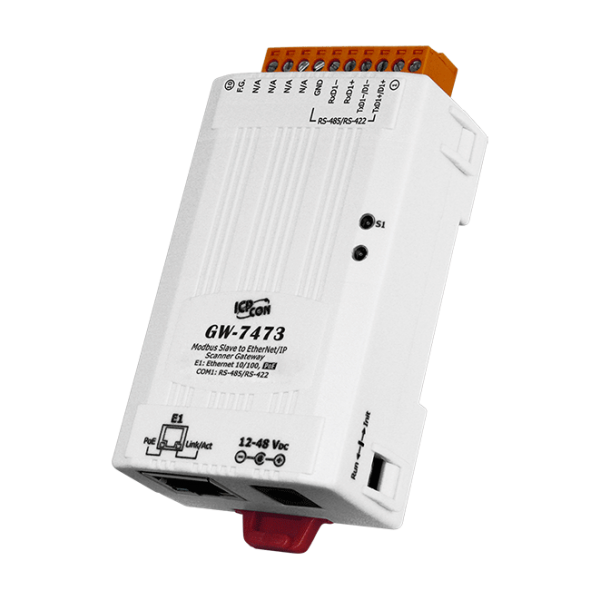

GW-7473

Name: GW-7473
Brand: ICP DAS
SKU: 06616300
Availability: InStock

ICP DAS

Ціна за запитом

Modbus Slave to EtherNet/IP Scanner gateway with PoE and 1 RS-422/485 (RoHS)

Специфікація

Specification

Ethernet
Total Ethernet	1
10/100 Mbit/s	1
Interfaces
RS-422/485	1
Supported Protocols
Industrial Protocols	EtherNet/IP scanner, Modbus TCP server, Modbus RTU slave
System Power Input
Input Voltage DC	12...48 V
Power over Ethernet (PoE)	PoE, IEEE 802.3af
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Dimensions and weight
Width	52 mm
Depth	27 mm
Height	77.4 mm
