Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Built-in, Panel, Wall |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |

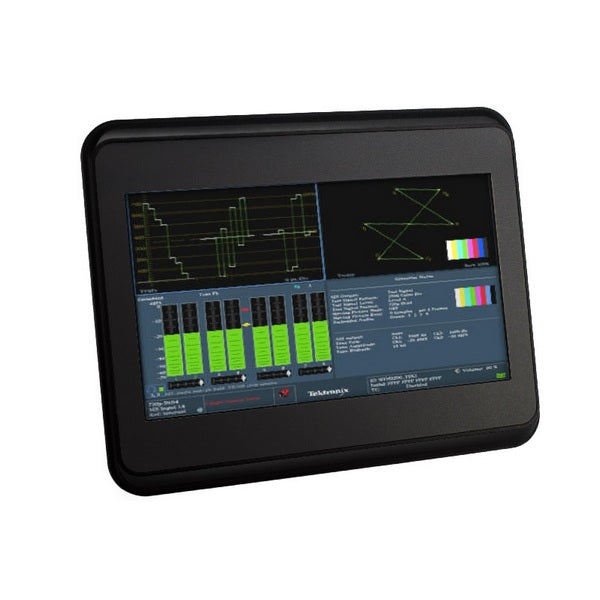

Display | |
| Display Type | LCD TFT |
| Diagonal | 4.3 " |
| Maximum resolution | 480x272 Dots |
| Brightness | 280 Cd/m2 |
| Contrast Ratio | 450~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Vortex86EX |
| Socket | CPU onboard |
| Max CPU frequency | 0.4 GHz |
Chipset | |
| Chipset | Vortex86 System-on-Chip |
Memory | |
| Form-factor | DDR3 |
| Socket Type | Soldered |
| Default on Board Memory | 0.13 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 1 |
| RS-485 | 2 |
| USB Total | 2 |
| USB 2.0 | 2 |
Digital Input-Output | |
| Channels of DIO | 8 |
Drive interfaces | |

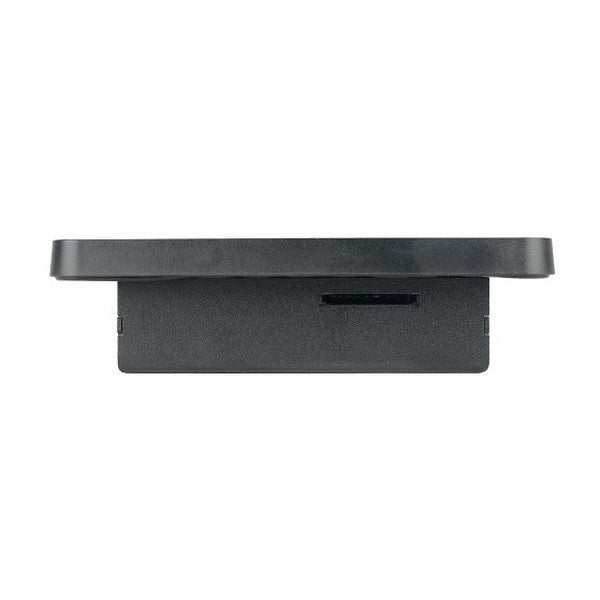

| SD Slots | 1 |
Connectors | |
| Connectors | 3xDB9, RJ45 Ethernet, 2xUSB, DC Input, SD card slot |
System Power Input | |
| Input Voltage DC | 5...5 V |
Software | |
| Operating System Compatibility | MS DOS, Linux OS, Windows Embedded CE |
Dimensions and weight | |
| Width | 129.1 mm |
| Height | 95 mm |
| Depth | 13.9 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
