System Architecture | |
| Form Factor | Half Size PICMG 1.3 |
CPU | |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9, Pentium, Celeron |
| Socket | LGA1700 |
Chipset | |
| Chipset | Intel Q670E |
Memory | |
| Form-factor | DDR5 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 96 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel Iris Xe Graphics |
| Interfaces | DisplayPort, HDMI |
Ethernet | |
| Controller Type | Intel i226-LM, Intel i226V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 9 |
| USB 2.0 | 4 |
| USB v3.x | 5 |
Drive interfaces | |
| SATA 3 | 2 |
| RAID Levels | 0, 1 |
Extension Slots | |
| Total | 6 |
| PCI Express x16 | 1 |
| PCI Express x1 | 4 |
| M.2 | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

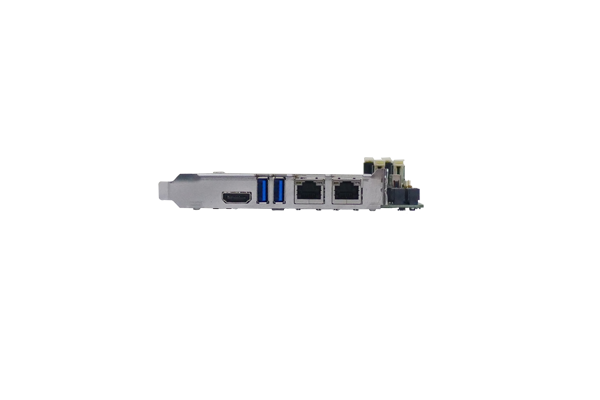

| Connectors | HDMI, 2xUSB, 2xRJ45 |
Dimensions and weight | |
| Width | 168 mm |
| Length | 126 mm |
Operating Conditions | |
| Operating Temperature | -10...60 °C |
| Humidity | 5-95% |
