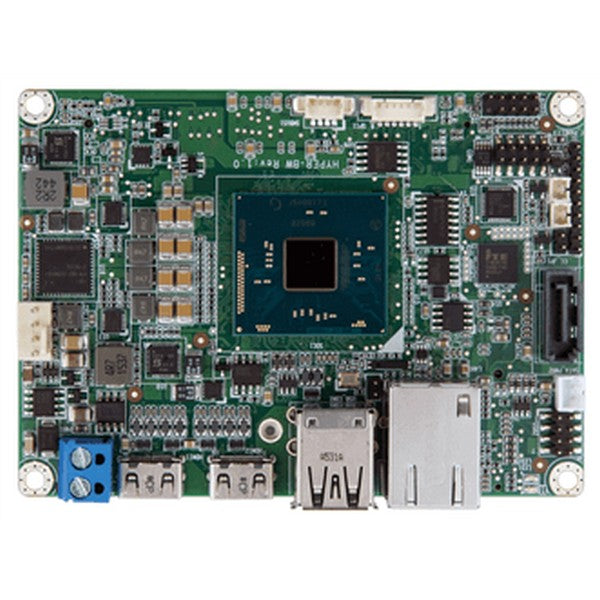

HYPER-BW-N3

Name: HYPER-BW-N3
Brand: IEI
SKU: 08866300
Availability: InStock

IEI

Ціна за запитом

PICO-ITX SBC with Intel Celeron N3160 1.6GHz, up to 8GB DDR3L, 2x Mini HDMI, PCIe GbE, M.2, USB 3.0, SATA 6Gb/s, COM, Audio

Специфікація

Specification

System Architecture
Form Factor	PICO-ITX
Construction
Type	Fanless
CPU
Processor Installed	Intel Celeron N3160
Socket	CPU onboard
Max CPU frequency	2.24 GHz
Number of CPU	1
Memory
Form-factor	DDR3L
Socket Type	1xSODIMM
Maximum Memory	8 GB
Assembly	Removable
Graphic
Graphic Controller	Intel Gen.8 Graphics Engine
Ethernet
Controller Type	Realtek RTL8111 10/100/1000 Mbps
Total Ethernet	1
10/100/1000 Mbit/s	1
Interfaces
COM Total	1
RS-232	1
USB Total	4
USB 2.0	3
USB v3.x	1
Extension Slots
Total	1
M.2	1
Additional Functions
Watchdog timer type	Software
Connectors
Connectors	RJ45 Ethernet, 2xUSB, DC Input, Mini HDMI
Dimensions and weight
Width	100 mm
Length	72 mm
Operating Conditions
Operating Temperature	-20...60 °C
