Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Display | |
| Display Type | LED Character |
CPU | |
| Processor Installed | 80188 |
| Max CPU frequency | 0.04 GHz |
Memory | |
| Default on Board Memory | 0 GB |
Installed drive | |
| Flash Memory Capacity | 512 MB |
| EEPROM Memory Capacity | 2 kB |
| Non-volatile NVRAM memory capacity | 31 Byte |

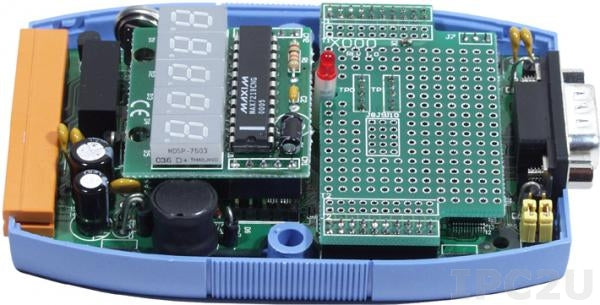

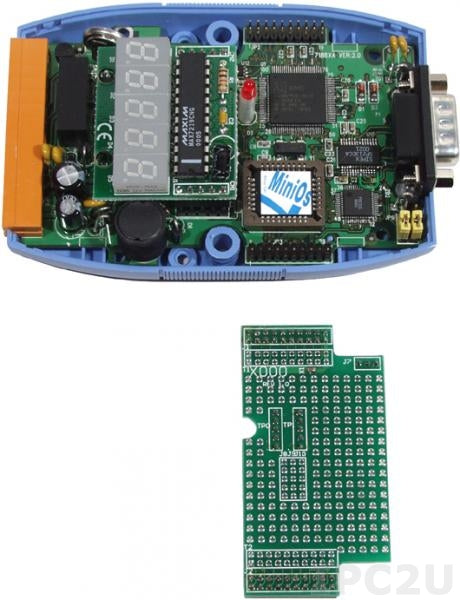

Expansion Module | |
| Quantity of Slots | 1 |
| Supported Module | X - board |
Software | |
| Operating System Installed | Mini OS7 |
| Programming Method | C/C++ |
Digital Input | |
| Total channels of digital input | 2 |
| Type | Dry contact |
Digital Output | |
| Total channels of digital output | 2 |
| Type | Open collector |
| Max. load current | 100 mA |
| Output voltage | 1~30 V |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-485 | 1 |
| RS-232/485 | 1 |
Additional Functions | |
| Watchdog timer type | Hardware |
Dimensions and weight | |
| Width | 72 mm |
| Depth | 119 mm |
| Height | 33 mm |
System Power Input | |
| Input Voltage DC | 10...30 V |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
