I-9053PV

Name: I-9053PV
Brand: ICP DAS
SKU: 07883900
Availability: InStock

ICP DAS

Ціна за запитом

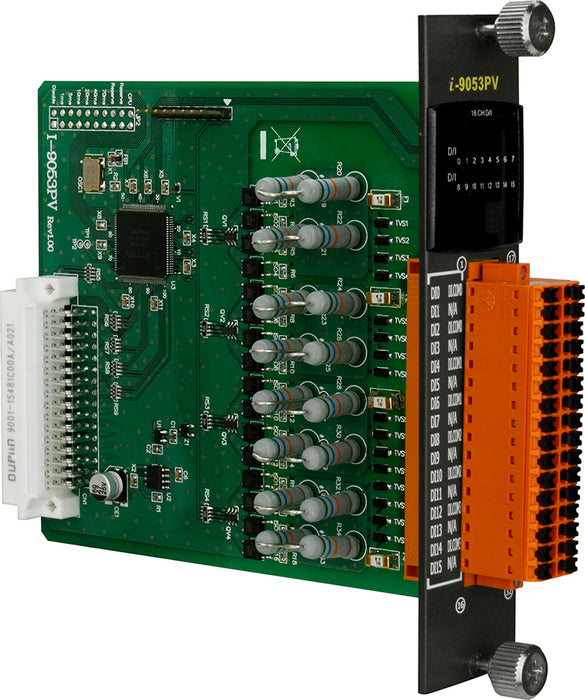

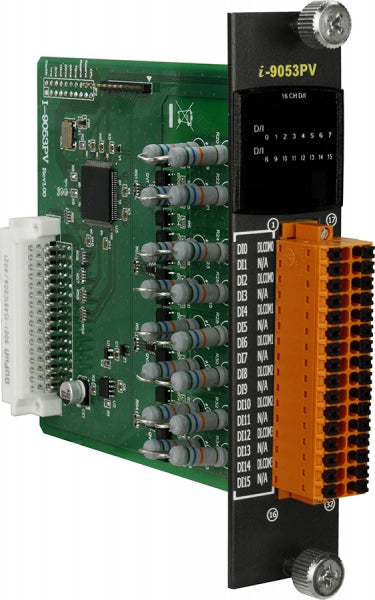

16-channel Isolated Digital Input with Low Pass Filter Module (RoHS), 220V

Специфікація

Specification

Construction
Construction Chassis	Open Frame
Mounting Configuration	Built-in
Digital Input
Total channels of digital input	16
Type	Wet contact
Level of Logic "0"	0~150 V
Level of Logic "1"	160~220 V
Sink/Source	Sink, Source
Expansion Module
Communication interface	Parallel Bus
Connectors
Connectors	Screw Terminal
Dimensions and weight
Width	31 mm
Depth	144 mm
Height	134 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	CE, FCC
EMS	IEC 61000-4-2

Документація
