Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Wall |
| Type | Fanless |
CPU | |
| Processor Installed | NXP i.MX 8M Plus |
| Socket | CPU onboard |
| Max CPU frequency | 1.2 GHz |
Chipset | |
| Chipset | SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 3 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 3 |
| USB v3.x | 2 |
Digital Input-Output | |
| Channels of DIO | 12 |
Industrial Interfaces | |
| CAN Port | 3 |
Drive interfaces | |
| MicroSD | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | eMMC |
| 1st Storage Capacity | 32 GB |
Extension Slots | |
| Total | 3 |
| M.2 | 3 |
| M.2 Form Factor | 2230 E, 3042 B, 3052 B, 2242 M |
| SIM Card slots | Yes, 1, Nano SIM |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
Connectors | |

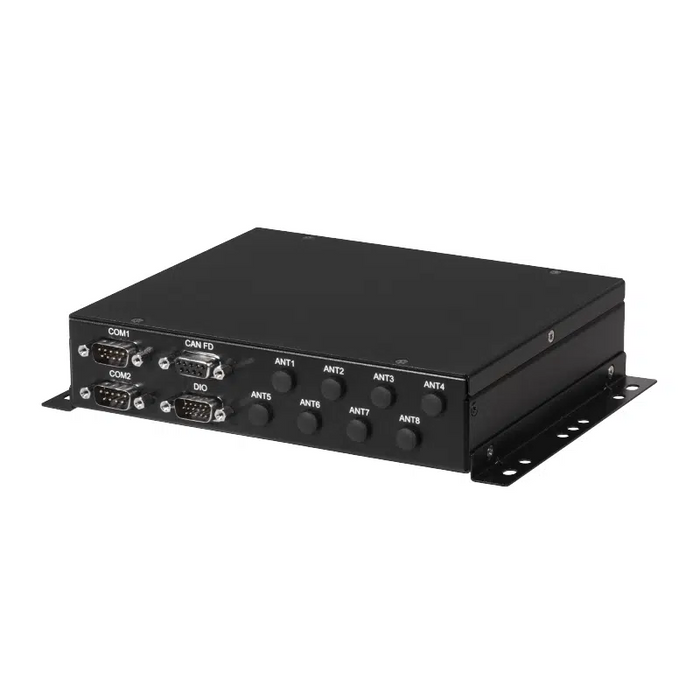

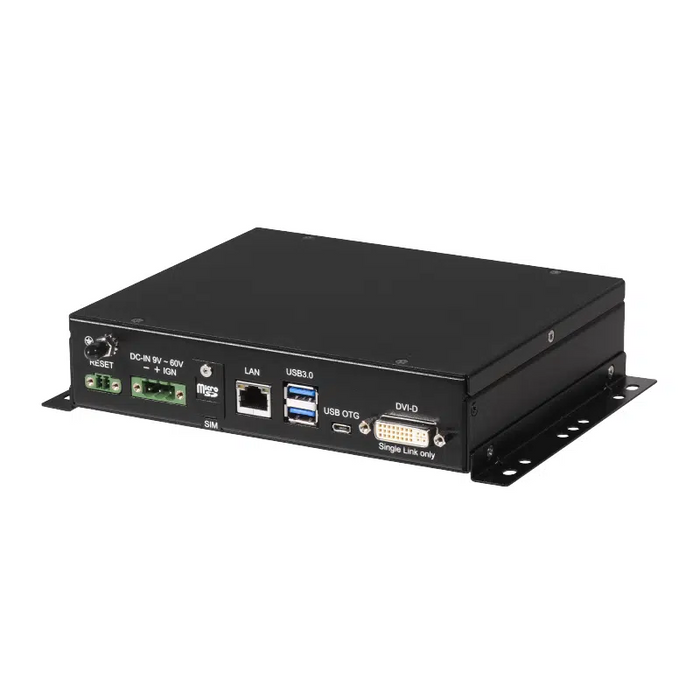

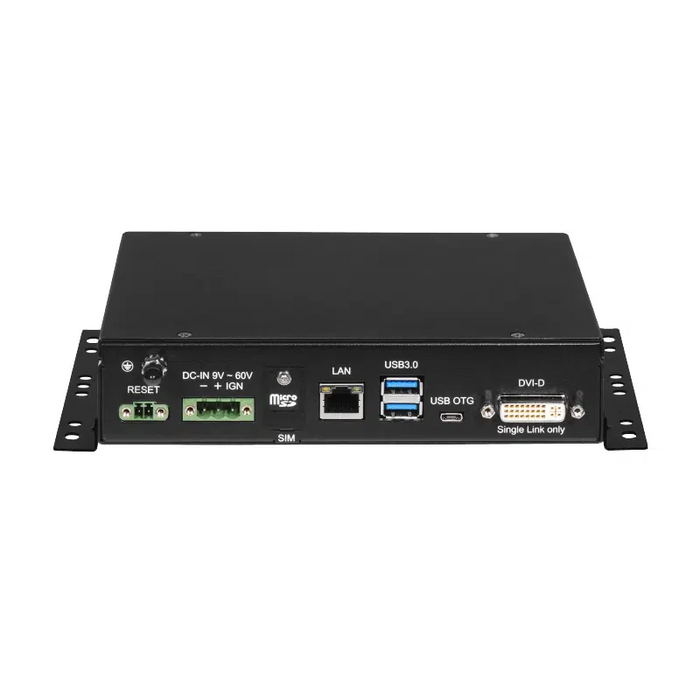

| Connectors | 2xDB9, DVI-D, RJ45 Ethernet, 2xUSB, SIM Card Slot, 1xDB15 DIO, DC input (terminal block), 2xDB9 CAN, Console Port Micro USB |
System Power Input | |
| Input Voltage DC | 9...60 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS |
Dimensions and weight | |
| Width | 214 mm |
| Height | 43 mm |
| Depth | 150 mm |
Operating Conditions | |
| Operating Temperature | -40...70 °C |
| Humidity | 10-90% |
| Vibration | IEC 60068-2-64. Random. 2.5G@5~500Hz. 1hr/axis MIL-STD-810G. Method 514.6. Procedure I. Cat.4. Operating |
| Shock | Operating: MIL-STD-810G. Method 516.6. Procedure. Trucks and semi-trailers=15G (11ms) with SSD |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Vehicle | E-Mark |
