Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Wall, DIN-Rail mount |
| Type | Fanless |
CPU | |
| Processor Installed | Nvidia Jetson Orin NX (8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3) |
| Socket | CPU onboard |
Chipset | |
| Chipset | SoC |
Memory | |
| Form-factor | DDR5 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 4 GB |
| Maximum Memory | 16 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | HDMI |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 1 |
| 2,5 Gbit/s | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 3 |
| USB 2.0 | 2 |
Digital Input-Output | |
| Channels of DIO | 8 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| M.2 | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| Drive Interface | PCIe x4 |
| 1st Storage Capacity | 480 GB |
Extension Slots | |
| Total | 4 |
| M.2 | 3 |
| M.2 Form Factor | 2280 M, 3052 B, 3042 B, 2230 E |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1, Nano SIM |
LED / Controls | |
| LED | Power LED |
Connectors | |

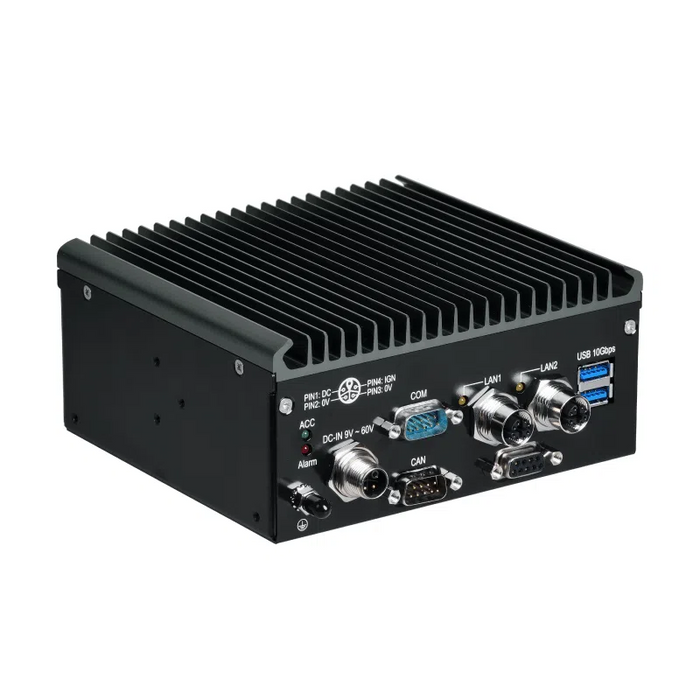

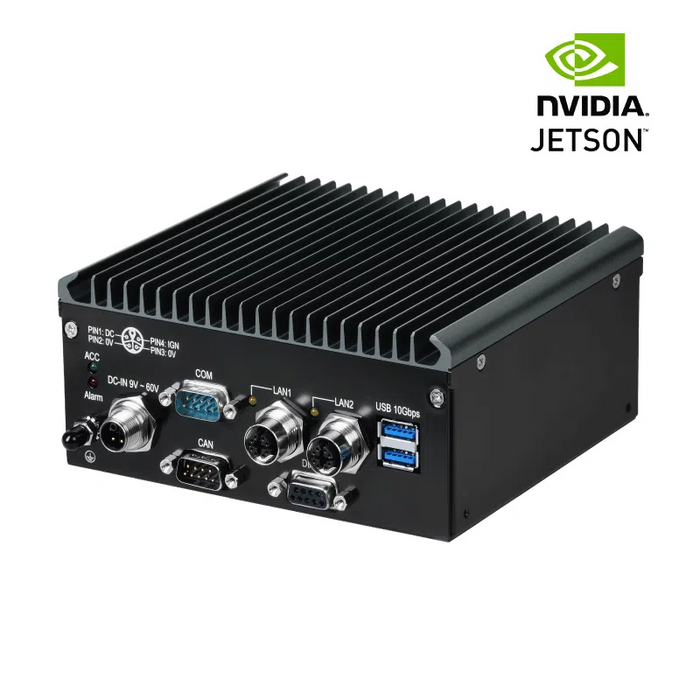

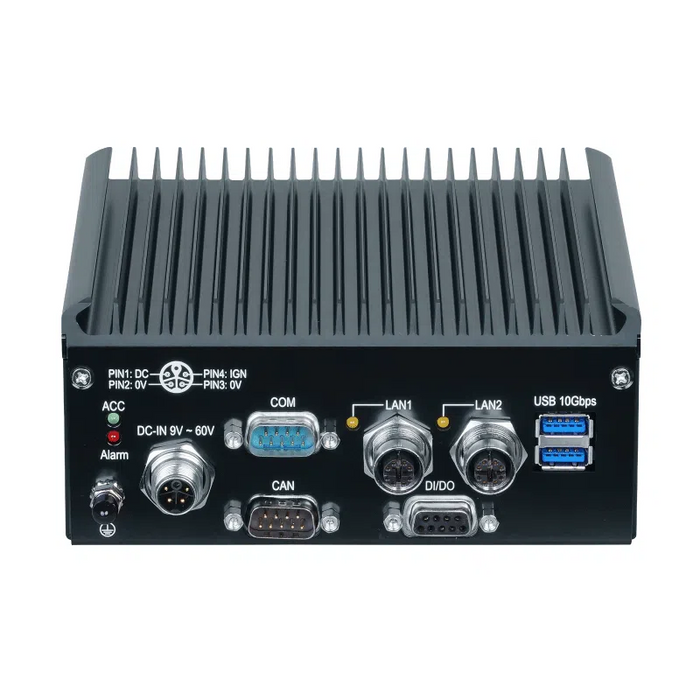

| Connectors | 2xDB9, HDMI, 2xUSB, USB type C, SIM Card Slot, 2xM12 LAN, M12 DC-in |
System Power Input | |
| Input Voltage DC | 9...60 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS |
Dimensions and weight | |
| Width | 150 mm |
| Height | 66 mm |
| Depth | 135 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
| Humidity | 10-90% |
| Vibration | Random - IEC60068-2-64. random. 2.5G@5~500Hz. 1hr/axis; MIL-STD-810G - Method 514.6. Procedure I. Category 4 |
| Shock | MIL-STD-810G. Method 516.6. Procedure I; Trucks and semi-trailers=15G (11ms) with SSD |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
