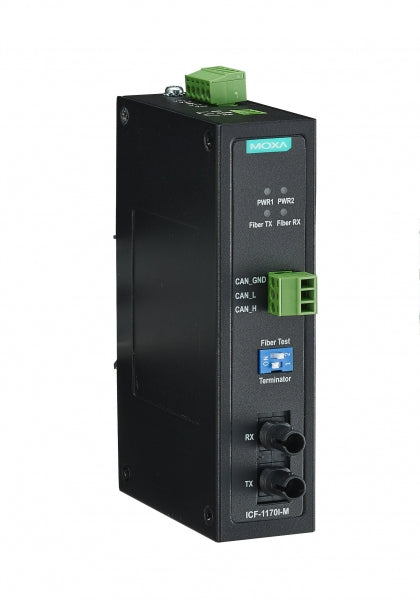

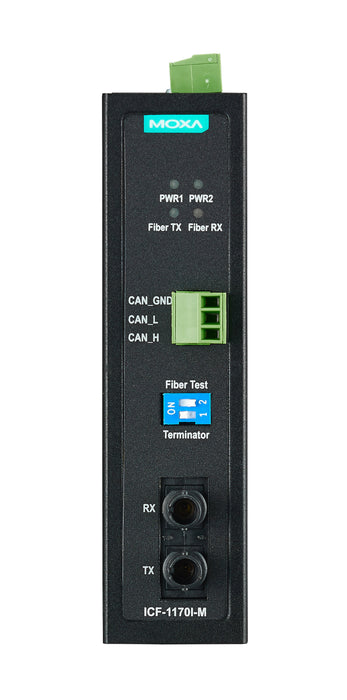

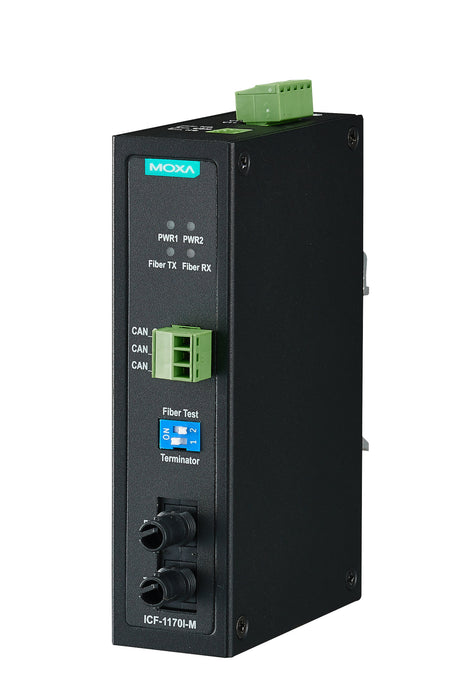

ICF-1170I-M-ST-T

Ціна за запитом
Industrial CANbus to Fiber Optic Converter, ST Multi-mode, with 2kV 2-way Galvanic Isolation, -40 to 85 C

Ethernet

Total Ethernet 1
10/100 Mbit/s 1
Type 10/100 Mbit/s ST

Fiber

Type of Fibre Optic multi-mode

Industrial Interfaces

CAN Port 1

Supported Protocols

Industrial Protocols CAN

LED / Controls

LED TX LED, RX LED, PWR1, PWR2
Setup of Operation Mode By Switches

Connectors

Connectors DC input (terminal block), CAN (terminal block)

System Power Input

Input Voltage DC Min 12 V
Input Voltage DC Max 48 V

Operating Conditions

Operating Temperature Min -40 °C
Operating Temperature Max 85 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration DIN-Rail mount

Dimensions and weight

Width 30.3 mm
Depth 70 mm
Height 115 mm

Standards and Certifications

Certifications CE, WEEE, FCC
Freefall IEC 60068-2-32
Safety UL 508, EN 60950-1
