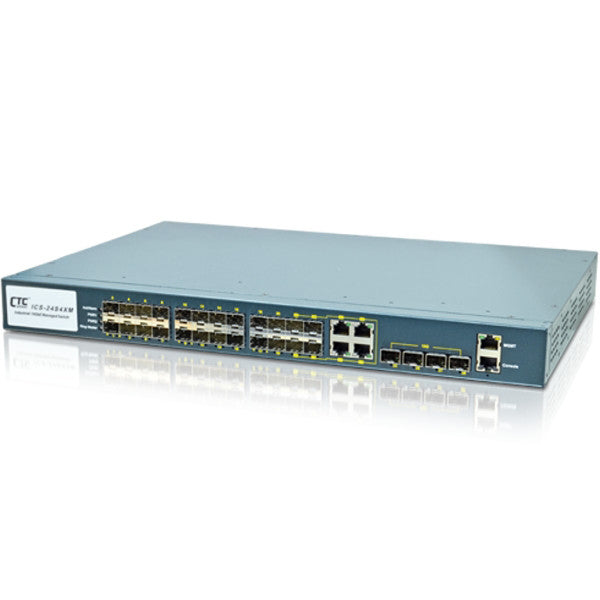

ICS-G24S2X-AA

Ціна за запитом
Industrial Managed Core Switch with 20x 1000 Base-X Ports, 4x Combo ports, 2x 10GbE SFP+ ports, Redundant dual 110/240VAC input power, -10..+60C Operating Temperature

Specification

Ethernet

Total Ethernet26
10/100/1000 Mbit/s4
Type 10/100/1000 Mbit/s4xCombo (RJ-45 or SFP)
SFP 100/1000 Mbit Ports24
10 Gbit SFP+ Ports2

Switch Properties

ManagedYes
Switch LevelLayer 2

Supported Protocols

Security ProtocolsIEEE 802.1X Network Access Control, HTTPS, SSH, SSL
IEEE StandardIEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

Digital Output

Total channels of digital output1
TypeSignal Relay

LED / Controls

Setup of Operation ModeTelnet, Console Port, Web-interface

Connectors

ConnectorsConsole Port RS-232 (RJ-45)

System Power Input

Redundant power inputYes
Input Voltage AC88...264 V
Power Supply Reserve input Voltage AC88...264 V

Construction

Construction ChassisMetal Chassis
Mounting Configuration19" Rackmount
Protection Level of ChassisIP30
Height1 U

Dimensions and weight

Width440 mm
Depth315 mm
Height44 mm

Operating Conditions

Operating Temperature-10...60 °C

Standards and Certifications

EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Rolling StockEN 50121-4
SafetyUL 60950-1
FreefallIEC 60068-2-32
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
