Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Desktop, Wall, Wall VESA 75 |
| Type | Fanless |
CPU | |
| Processor Installed | AMD R-Series |
| CPU Support Type | AMD |
Chipset | |
| Chipset | A70M |
Memory | |
| Form-factor | DDR3 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Ethernet | |
| Controller Type | Realtek 8111E |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC662 |
Drive interfaces | |
| SD Slots | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
Connectors | |

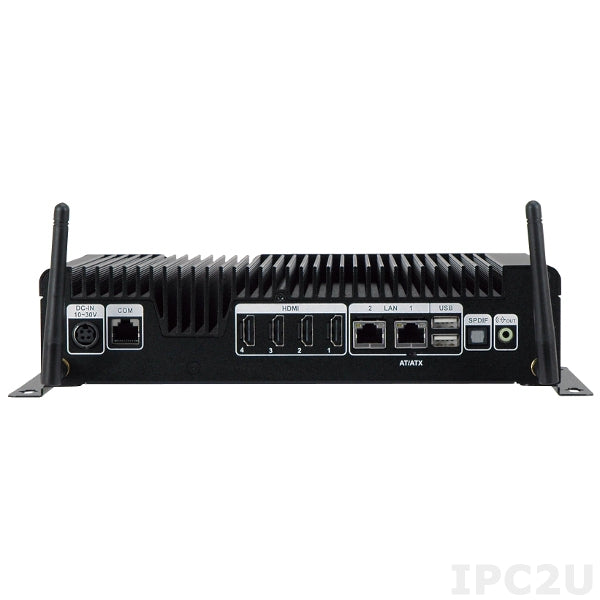

| Connectors | HDMI, RJ45, 2xRJ45 Ethernet, 4xUSB, Audio Out, DC Input, S/PDIF Out |
System Power Input | |
| Input Voltage DC | 10...30 V |
Software | |
| Operating System Compatibility | Windows Embedded Standard 7, Windows 8 |
Dimensions and weight | |
| Width | 251 mm |
| Height | 57 mm |
| Depth | 173.35 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE/FCC |
