IDS-3212EG-45SVA1E

Name: IDS-3212EG-45SVA1E
Brand: Advantech
SKU: 06706600
Availability: InStock

Advantech

Ціна за запитом

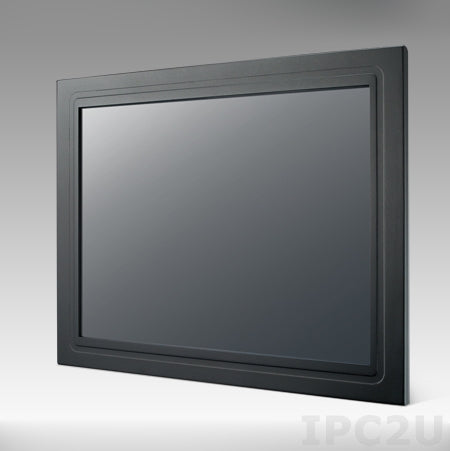

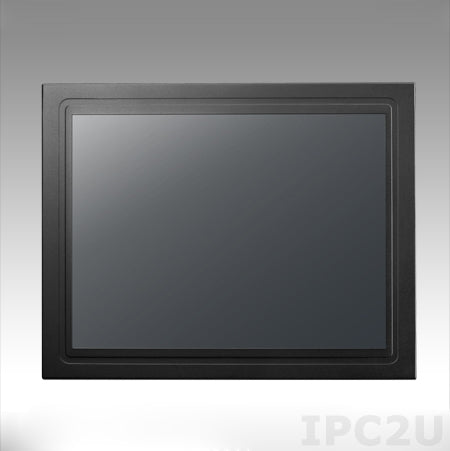

12" Industrial SVGA TFT LCD LED Monitor with tempered glass, 450 cd/m2, 1xVGA, 1xDVI, 12V DC-In, without Power Adapter, 0..+45C

Специфікація

Specification

Construction
Construction Chassis	Metal Chassis

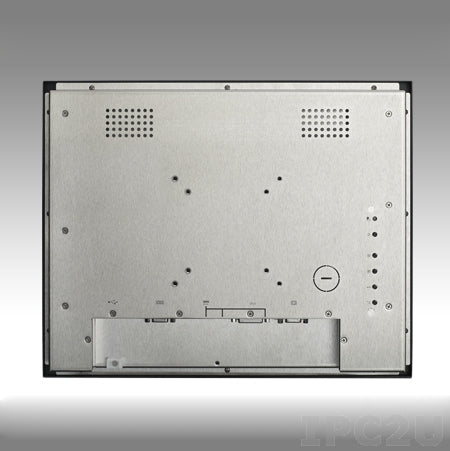

Mounting Configuration	Panel, Wall VESA 100, Wall VESA 75
Material Front Side (Panel)	Aluminum
Display
Display Type	LCD
Diagonal	12.1 "
Maximum resolution	800x600 Dots
Brightness	450 Cd/m2
Contrast Ratio	700~1
Input Interface	VGA
LED / Controls
LED	Power LED
Controls	On/Off, Control Buttons
Connectors

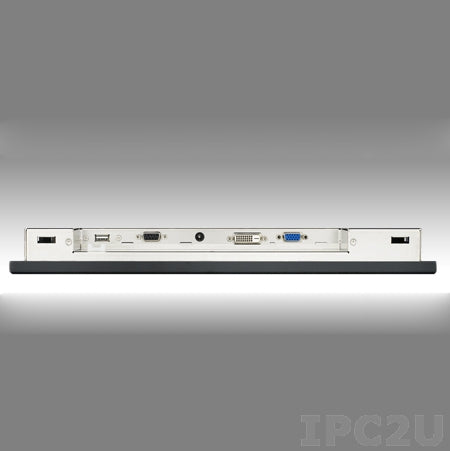

Connectors	DB15 VGA, DC Input
System Power Input
Input Voltage DC	12...12 V
Power Supply
Supported Types of Power Supply	External power adapter AC/DC
Operating Conditions
Operating Temperature	0...45 °C
Vibration	5-500Hz. 0.026G²/Hz. 2.16Grms. X. Y. Z 1 hour per axis
Dimensions and weight
Width	323.7 mm
Height	262.4 mm
Depth	36.5 mm
Standards and Certifications
Certifications	CE, FCC
Safety	CCC
