Construction | |
| Construction Chassis | Metal Chassis |

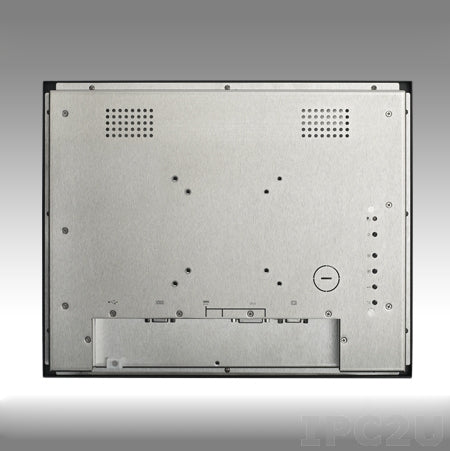

| Mounting Configuration | Panel, Wall VESA 100, Wall VESA 75 |
| Material Front Side (Panel) | Aluminum |
Display | |
| Display Type | LCD |
| Diagonal | 17 " |
| Maximum resolution | 1280x1024 Dots |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 800~1 |
| Input Interface | VGA, DVI-D |
Touch Screen | |
| Touch Screen Type | Resistive |
| Interface | RS-232, USB |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, Control Buttons |
Connectors | |

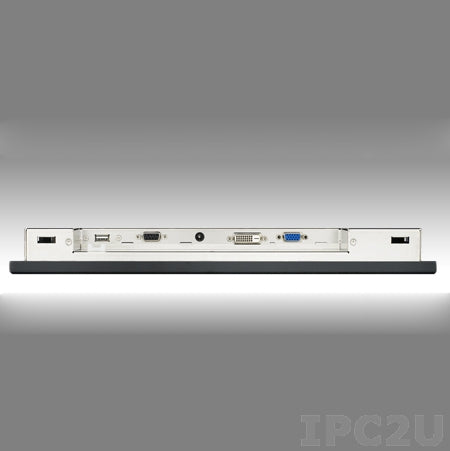

| Connectors | DB9, DVI-D, DB15 VGA, 1xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Output Power | 60 W |
| Supported Types of Power Supply | External power adapter AC/DC |
| Input Voltage AC | 100...240 V |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Vibration | 5-500Hz. 0.026G²/Hz. 2.16Grms. X. Y. Z 1 hour per axis |
Dimensions and weight | |
| Width | 425 mm |
| Height | 357.5 mm |
| Depth | 39 mm |
Standards and Certifications | |
| Certifications | CE, FCC |
| Safety | CCC |
