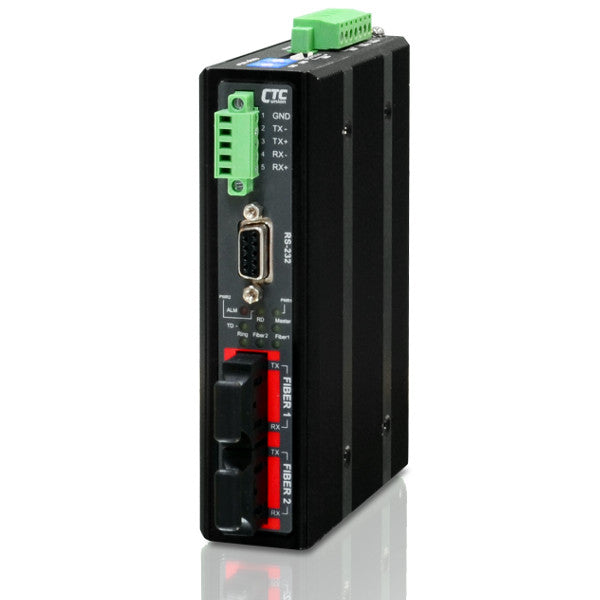

IFC-FDC-ST050

Ціна за запитом
Industrial RS-232/422/485 Daisy Chain Fiber Media Converter with Optical Single-mode ST port, Distance 50km, 2.5kV Isolation, Redundant Dual 12/24/48VDC Input Power, -10.. 60C Operating Temperature

Specification

Ethernet

10/100 Mbit/s2
Type 10/100 Mbit/s2xST

Fiber

Number of Optical Ports2xST

Interfaces

COM Total2
RS-2321
RS-422/4851
Isolation of COM Ports2.5 kV (RS-232), 2.5 kV (RS-422/485)

Digital Output

Total channels of digital output1
TypeElectromagnitic relay
Relay (Form C)1

LED / Controls

LEDModule Fail, TX LED, RX LED, Master LED, PWR1, PWR2
Setup of Operation ModeBy Switches

Connectors

ConnectorsDC input (terminal block)

System Power Input

Input Voltage DC9.6...58 V
Power Supply Reserve input Voltage DC9.6...58 V

Operating Conditions

Operating Temperature-10...60 °C

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width38.6 mm
Depth106 mm
Height142.1 mm

Standards and Certifications

CertificationsCE
EMIEN 55022 Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN 61000-6-4
FreefallIEC 60068-2-32
SafetyUL 60950-1
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
