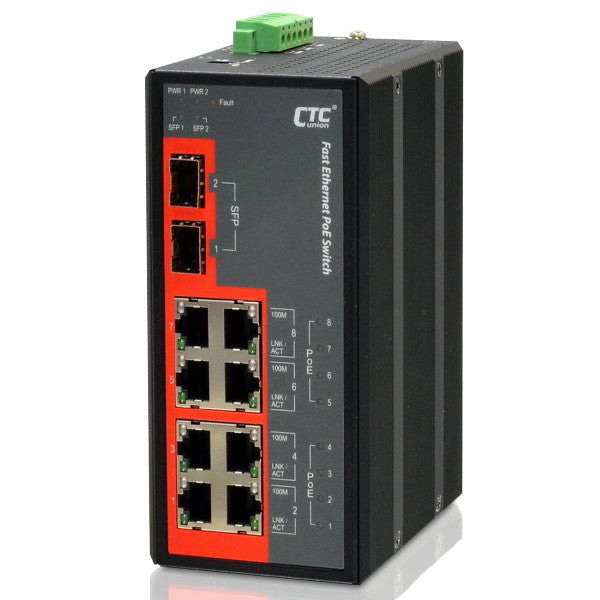

IFS-802GS-8PH

Ціна за запитом
Industrial Unmanaged Fast Ethernet Switch with 8x 100 Base-T PoE Ports, 2x 1000Base-X SFP Ports, Redundant Dual 48VDC Input Power, -10..+60C Operating Temperature, EN50121-4, EN61000-6-2, EN61000-6-4, CE, FCC certific

Specification

Ethernet

Total Ethernet10
SFP 100/1000 Mbit Ports2
PoE/PoE+ 10/100 Mbit/s8

Switch Properties

ManagedNo

Supported Protocols

IEEE StandardIEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)

LED / Controls

Setup of Operation ModeBy Switches

System Power Input

Redundant power inputYes
Input Voltage DC44...57 V
Power Supply Reserve input Voltage DC44...57 V

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width72 mm
Depth106 mm
Height152 mm

Operating Conditions

Operating Temperature-10...60 °C

Standards and Certifications

CertificationsCE
EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Rolling StockEN 50121-4
SafetyUL 60950-1
FreefallIEC 60068-2-32
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
