Ethernet |
| Total Ethernet | 12 |
| 10/100/1000 Mbit/s | 8 |
| SFP 100/1000 Mbit Ports | 4 |
Switch Properties |
| Managed | Yes |
| Switch Level | Layer 2, Layer 3 |
| Supported technologies | QoS |
| Supported functions | Port Mirror, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC ACL, Ring Operation |
| MAC Table Size | 8000 |
| Jumbo Frame Size | 9 kB |
| Max. Number of VLANs | 255 |
| Priority Queues | 8 |
| IGMP Groups | 255 |
Supported Protocols |
| Protocol Layer 3 | Static Routing |
| Managment Protocols | LLDP, Telnet, SNMP, NTP, IGMP Snooping v1/v2/v3, IGMP Querier |
| Security Protocols | SSH, SSL |
| IEEE Standard | IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
Digital Input |
| Total channels of digital input | 2 |
Digital Output |
| Total channels of digital output | 2 |
Connectors |
| Connectors | RJ45 (Console) |

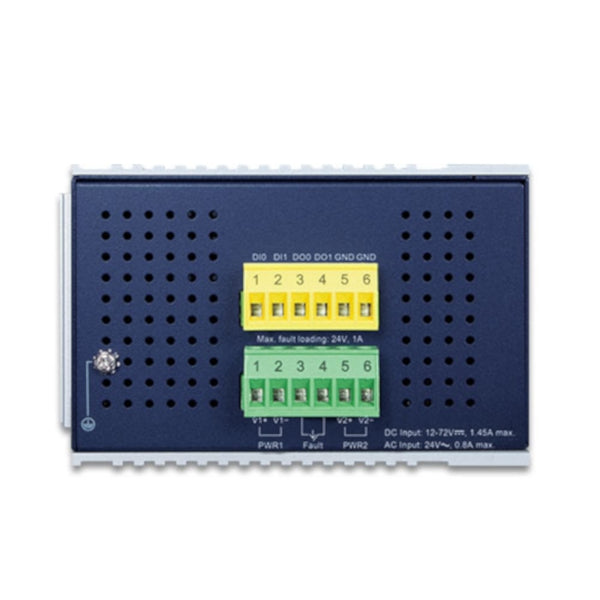

System Power Input |
| Input Voltage DC | 12...72 V |
| Input Voltage AC | 24...24 V |
Construction |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Wall, DIN-Rail mount |
| Protection Level of Chassis | IP30 |
Dimensions and weight |
| Width | 76.8 mm |
| Depth | 107.3 mm |
| Height | 152 mm |
Operating Conditions |
| Operating Temperature | -40...75 °C |
Standards and Certifications |
| Certifications | CE, FCC Class A |
| EMI | FCC Part 15 Subpart B Class A |
| Freefall | IEC 60068-2-32 |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27 |
