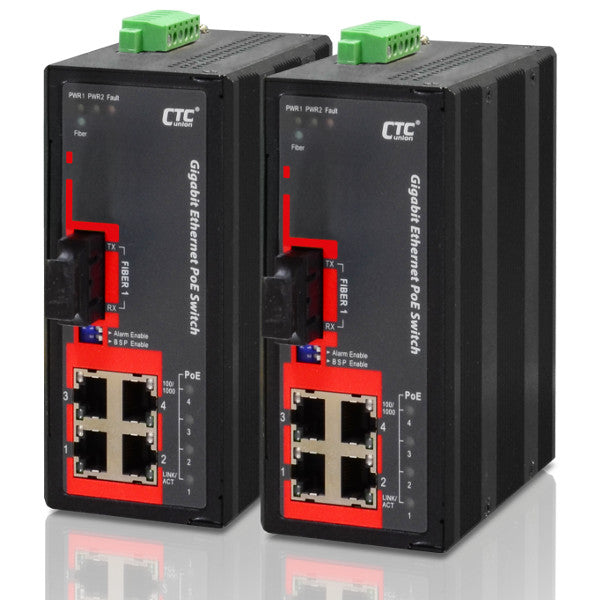

IGS-401F-4PHE24-SC20A

Ціна за запитом
Industrial Unmanaged Gigabit Ethernet Power-over-Ethernet Switch with 4x 1000 Base-T(X) PoE Ports, 1x 1000 Base-X Optical WDM Type A SC Port, Distance 20km, Redundant Dual 24/48VDC Input Power, -40..+75C Operating Temperature

Specification

Ethernet

Total Ethernet5
10/100/1000 Mbit/s5
Type 10/100/1000 Mbit/s1xSC, 4xRJ-45, WDM
PoE+ 10/100/1000 Mbit/s4

Fiber

Number of Optical Ports1xSC
Length Wave RX/TX1550 nm
Length Wave TX1310 nm

Switch Properties

ManagedNo

Supported Protocols

IEEE StandardIEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Digital Output

Total channels of digital output1
TypeSignal Relay

LED / Controls

Setup of Operation ModeBy Switches

System Power Input

Redundant power inputYes
Input Voltage DC20...57 V
Power Supply Reserve input Voltage DC20...57 V

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width62.5 mm
Depth106 mm
Height134.8 mm

Operating Conditions

Operating Temperature-40...75 °C

Standards and Certifications

CertificationsCE
EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Rolling StockEN 50121-4
SafetyUL 60950-1
FreefallIEC 60068-2-32
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
