Ethernet |
| 10/100/1000 Mbit/s | 8 |
| 10 Gbit SFP+ Ports | 4 |
Switch Properties |
| MAC Table Size | 16000 |
| Jumbo Frame Size | 12 kB |
Supported Protocols |
| Managment Protocols | SNMPv1/v2c/v3, HTTP, LLDP, Syslog, SNTP, TFTP, DHCP Option 66/67/82, IGMP Snooping v1/v2/v3 |
| Security Protocols | RADIUS, TACACS+, SSH2 |
| IEEE Standard | IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication |

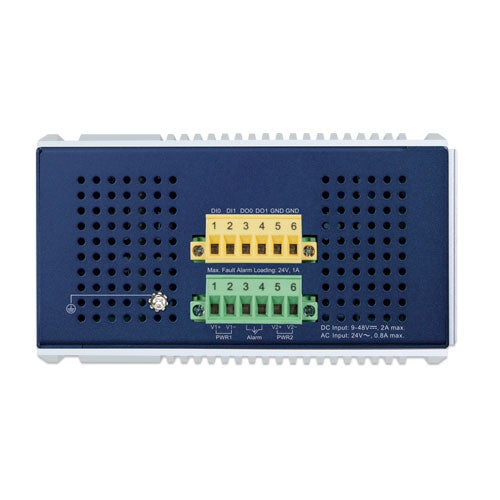

Digital Input |
| Total channels of digital input | 2 |
Digital Output |
| Total channels of digital output | 2 |
System Power Input |
| Input Voltage DC | 9...48 V |
Construction |
| Mounting Configuration | DIN-Rail mount, Wall |
| Protection Level of Chassis | IP30 |
Dimensions and weight |
| Width | 76 mm |
| Depth | 135 mm |
| Height | 152 mm |
Operating Conditions |
| Operating Temperature | -40...75 °C |
| Humidity | 5-95% |
Standards and Certifications |
| Certifications | CE |
| EMI | FCC Part 15 Subpart B Class A |
| Freefall | IEC 60068-2-32 |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27 |
