System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| СPU Generation/Family | Apollo Lake, Raptor Lake |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9, Pentium |
| Socket | LGA1700 |
Chipset | |
| Chipset | Intel H610 |
Memory | |
| Socket Type | 2xSODIMM |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, HDMI, eDP |
Ethernet | |
| Controller Type | Intel i225LM |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 8 |
| USB 2.0 | 5 |
| USB v3.x | 3 |
Audio | |
| Audio Controller | Realtek ALC897 |
Drive interfaces | |
| SATA 3 | 2 |
| M.2 | 1 |
Extension Slots | |
| SIM Card slots | Yes |
| PCI Express x16 | 1 |
| M.2 | 3 |
Connectors | |
| Internal Ports | 4xCOM, 2xSATA 3, 4-pin (12V DC CPU), USB 3.0, 3xUSB 2.0 |

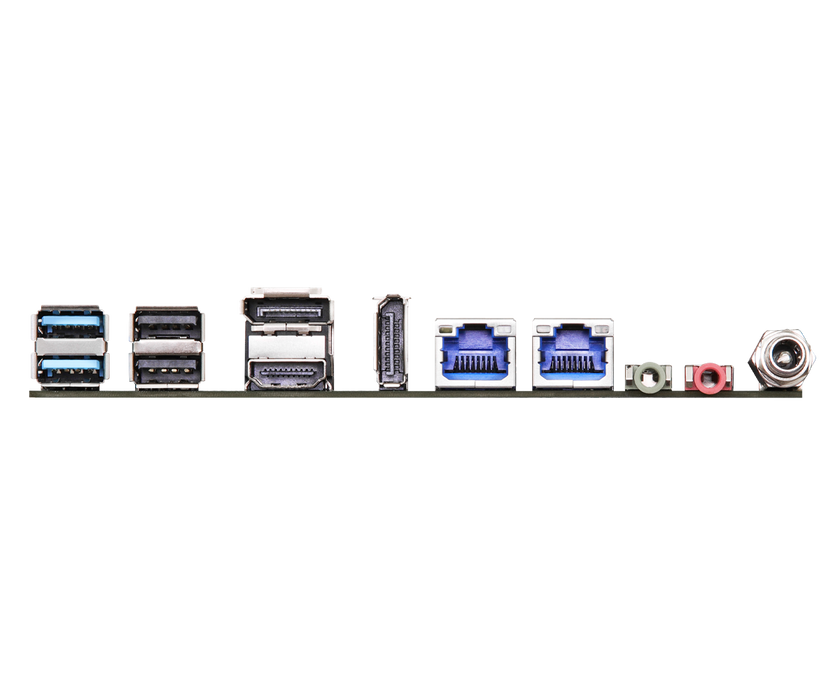

| Connectors | HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...70 °C |
